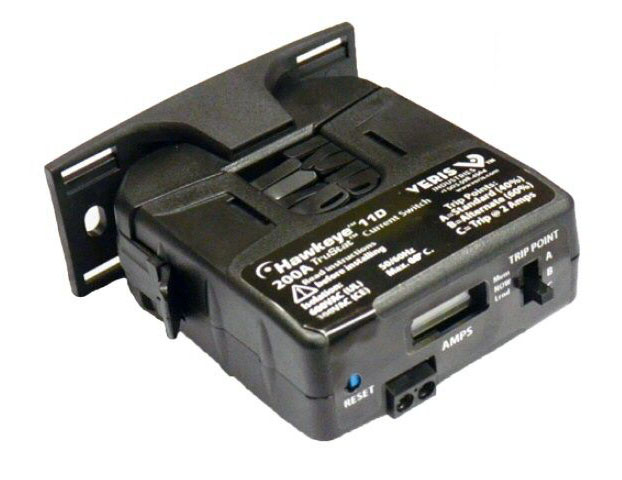

The Hawkeye TruStat H11D is a microprocessor based, self-learning, self-calibrating current switch. It is designed for user ease, providing calibration-free status for both under and overcurrent, an LCD display, and slide-switch selectable trip point limits. At initial power-up, the H11D automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than the selected range.

APPLICATIONS

• HVAC fans, pumps, and blowers
• Monitoring status of industrial process equipment

Automatic calibration...reduced errors and installation costs

• Microcontroller based learning technology...automatically learns load upon initial power-up...eliminates labor associated with calibration
• Monitors current for both under- and over-load in one package

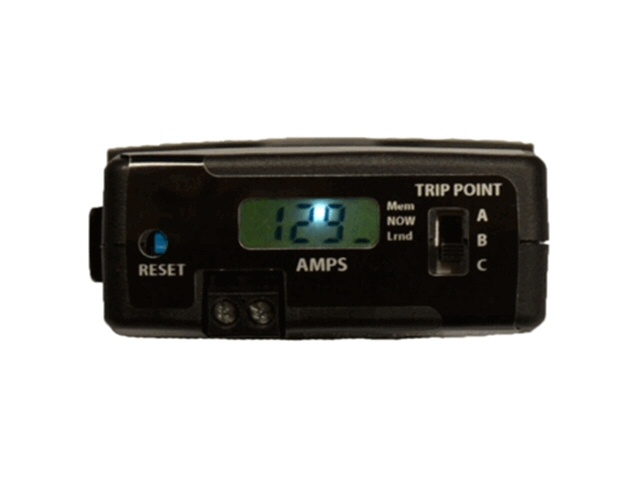

• LCD allows viewing of present, learned and trip currents

Industry Leading Features

• Automatic with selectable trip points (2 -200A)
• Backlit LCD display...view the monitored current (up to 200A) ... eliminates the need for expensive handheld meters and offers easy visibility in dark enclosures
• Reset function can be used when unpowered...reduces the possibility of an undesirable arc flash incident
• 100% solid state...no moving parts to fail
• Removable mounting bracket for installation flexibility, can be installed in three different configurations for added flexibility
• Self-gripping iris for easy installation
• 5-year warranty
