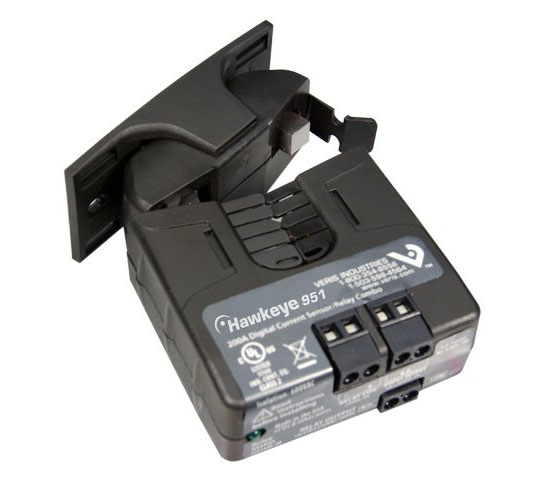

The Hawkeye 951 provides accurate load trending information with a proportional 4-20mA output signal. This device offer three amperage ranges for versatility, with easy slide-switch selection. The command relay is fully integrated in the device, but it is isolated from the current sensor. This combination makes these products ideal for start/stop control and status monitoring of motors, using one device instead of two.

APPLICATIONS

• Load trending
• Motor control
• Positive proof of flow

Loop-powered analog current sensor with integral start/stop command relay

• Reduces the number of installed components...saves time and space
• Self-gripping split-core for fast retrofit installation...no need to remove conductor
• One device to install for start/stop & status...reduces installation charges
• Power the current sensor and receive the 4-20mA signal with only two wires...fewer wires required than with traditional 3-wire sensors

Selectable factory calibrated ranges up to 120A for increased flexibility and resolution

• Factory calibrated switch-selectable ranges (30/60/120A) for high resolution and installation ease
• No jumpers on unit...reduce installation error
• Removable mounting bracket for installation flexibility
• Bracket can be installed in three different configurations...added flexibility
• Command relay switches up to 5A@250VAC
• 5-year limited warranty
