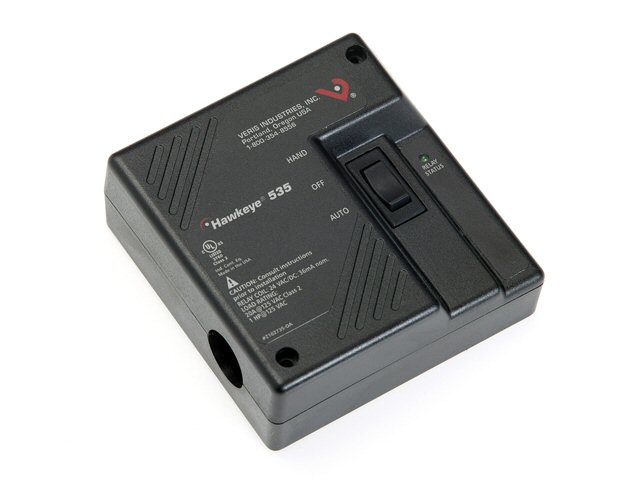

The Hawkeye 5xx Series combines an industrial grade load-switching relay, current status switch, and Hand-Off-Auto (HOA) switch in an easy-to-install remote enclosure, making the series ideal for monitoring, directly controlling, and troubleshooting the control wiring of fractional horsepower motors. The relay, current sensor, and HOA switch are combined in a series circuit. Once an H5xx is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. An H500 can be mounted directly on 2- or 4-gang junction boxes, nippled to a field enclosure, or stand alone.

APPLICATIONS

• Monitoring status and controlling small motor loads that are not driven by a motor starter or contactor
• Exhaust fans
• Unit ventilators
• Fan terminal units
• Fan coil units
• Recirculating pumps

Remote mounted current status sensor and command relay with or without HOA switch

• Combines status sensor, command relay, and HOA switch in a single series circuit...one line connection for three devices
• Remote mounted enclosure eliminates the need to cram multiple devices into a junction box
• HOA provides true relay control...ideal for troubleshooting control wiring
• SPST relay is field-selectable for N.O. or N.C. operation

Rated for a wide range of fractional HP motor applications

• All models rated up to 1HP@120VAC, NS Versions 1HP@120VAC and 1.5HP@277VAC... one product for all fractional HP motor control and status applications

Easy, flexible installation

• Mounts directly on gang boxes, flush to existing enclosures or stand alone...maximum installation flexibility
• 5-year limited warranty
