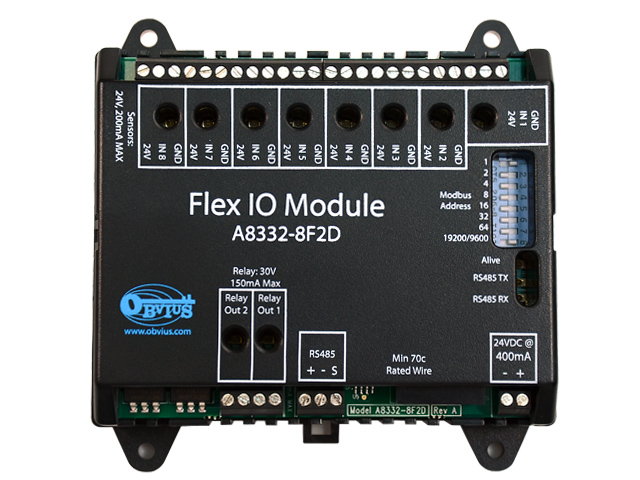

The A8332-8F2D Input Module provides a convenient way to optimize inergy use and accurately allocate costs. Add eight standard pulse and/or analog sensors to a data acquisition network. Integrate your Veris network sensors through the A8332-8F2D to a Veris H8822 Data Acquisition Server.
The A8332-8F2D is the first truly flexible input I/O module that allows incorporation of virtually any industry-standard sensor through a single device. The module can be incorporated with cost-effective data acquisition and wireless metering solutions such as the H8822 AcquiSuite DR server, which, as a properly integrated system, provides high performance and low cost. This system can be incorporated into any new or existing Building Automation System (BAS). Using the AcquiSuite data acquisition system, users can set input types (pulse, analog, resistive, etc.), giving access to real time resource consumption for a facility on a single board.

APPLICATIONS

• Demand response program control and reporting
• Cost allocation to tenants and third parties
• Measurement and verification of energy savings
• Converting pulse inputs from water and gas flow meters to a Modbus network
• Monitoring performance of building systems (e.g., chillers, boilers,fans)

Network up to 8 industry-standard sensors to the AcquiSuite data acquisition network

• Universal inputs simplify setup...just connect sensors and select device output type via the AcquiSuite or using Obvius configuration software
• Check device status at a glance...LED indicators allow for fast recognition of on/off status, TX/RX communications, and 8 input notifications
• Field-selectable address DIP-switch...no software or PC configuration required
• High reliability...nonvolatile memory retains configuration and pulse data during power failure

Installing and commissioning the A8332-8F2D is a snap!

• Windows software tool makes addressing and input type identification quick and easy
• All configuration information and input data is stored in non-volatile memory to prevent data loss in the event of power failure
• 8 user selectable universal inputs to aggregate analog, pulse, and resistance sensors/meters
