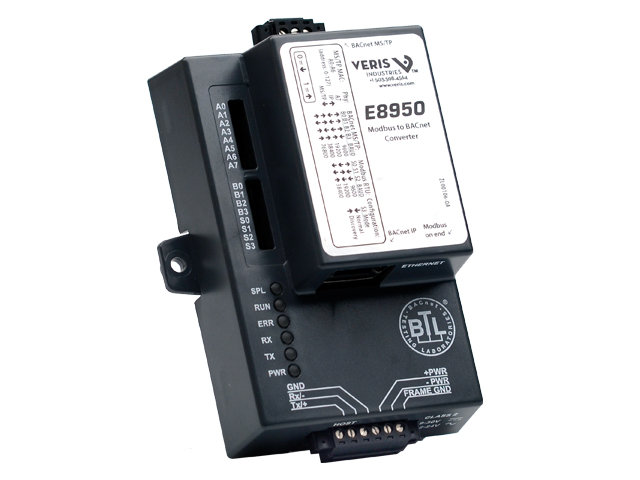

The E8950 Modbus to BACnet Protocol Converter enables easy integration of a broad selection of Veris meters with Building Automation Systems via BACnet protocol. When networked, the E8950 detects supported Modbus meters and gives them a unique BACnet Device ID and full set of measurement data and configuration objects. Simply select the desired MS/TP baud rate using DIP switches or configure the IP interface using the integral web server, and the supported Veris Modbus meters are available as fully-supported BACnet devices.

APPLICATIONS

• Energy Management with Building Automation Systems
• Integrated metering of HVAC systems and chillers

FEATURES

• Enables Veris Meter access via BACnet MS/TP and/or BACnet IP
• Automatic baud rate detection of BACnet MS/TP
• Supports a broad range of Veris meters - H8035, H8036, H81xx with H8163-CB, H8238, H8436, H8437, E50C2, E51C2, E50C3*, E51C3*,E30Ax42, E30Bxxx, E30Cxxx, E31Bxxx, E31Cxxx
• Each E8950 can support up to 1000 BACnet measurement points (or 32 meters max, if <1000 total points)
• Simultaneously supports mixed meter types (with common baud rate)
• Simple to set up...automatically detects supported meters and configures BACnet objects
• No manual mapping of Modbus points required
• Presents a separate device object for each meter attached
• Can be mounted on DIN rail or wall
