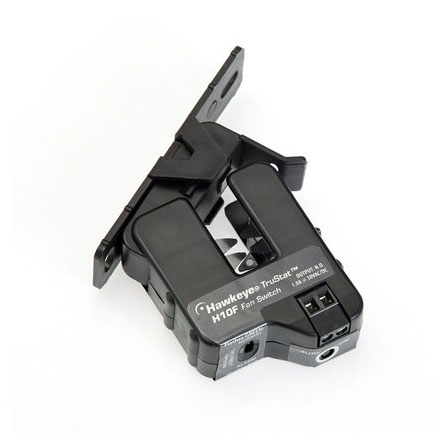

The Hawkeye TruStat H10F is a microprocessor based, self-learning, self-calibrating current switch. It provides calibration-free motor status, for both under-current and over-current (locked rotor…) conditions. At initial power-up, the H10F automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than ±20% of the learned load.

APPLICATIONS

• Monitoring status of industrial process equipment, +/- 20% of learned current
• Verifying electrical service run times
• Monitoring status of critical motors (compressor, fuel, etc.)

Automatic calibration...reduced errors and installation costs

• Microcontroller based learning technology...automatically learns load upon initial power-up...eliminates labor associated with calibration
• Monitors current for both under- and over-load in one package
• Small size fits easily inside small starter enclosures...saves space

Industry Leading Features

• Automatic adjustable trip point (3.5-100A)
• 100% solid state...no moving parts to fail
• Removable mounting bracket for installation flexibility
• 5-year warranty
