The E31 Series Split-Core Panelboard Monitoring System provides a solution for electrical load management, ideal for retro-fit applications for dynamic loads, such as the data storage industry, lighting panels, etc. The adapter boards can be mounted on either DIN Rail or Snaptrack for added flexibility.

The E31AY63 kit with Advanced functionality monitors voltage, current, power and energy consumption of each circuit in a panelboard including the main breaker. The accumulated information can be transmitted through the communications interface. Data updates occur roughly every two seconds to provide timely preventative maintenance information. As any circuit approaches the user-configured thresholds, alarm indicators are triggered, preventing costly downtime from overloaded circuits or failed loads.

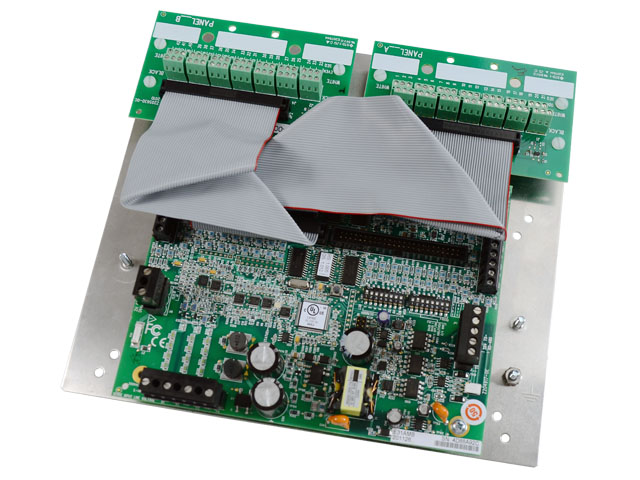

Every E31AY63 kit includes an Advanced[Intermediate/Basic] main circuit board and two CT adapter boards to monitor up to 42 branch circuits, two 3-phase mains and two neutrals. The main board and adapter boards are mounted on a single bracket and connected with flat ribbon cables. 50 A, 100 A and 200 A CTs are sold separately (see E31CT).

APPLICATIONS

• Retrofit branch circuit monitoring into existing panels
• Load based cost allocation
• Overload protection
• Load management
• Load balancing
• Lighting circuits

FEATURES:

A compact solution for panelboard monitoring

• IEC Class 1 metering accuracy
• Reports voltage, current, power and energy for mains and branches...one product covers the whole panelboard
• Up to 50 circuits (42 branch circuits, two 3-phase mains, two neutrals) with one device...saves space
• Two mounting options (DIN Rail or Snaptrack) for the CT Adapter Boards...installation flexibility
• 4 user-configurable alarm threshold registers and individual monitoring of all branches...improved load management
• Built-in ability to set the orientation and numbering of the circuits
• 1/4 A to 200 A monitoring...widest dynamic range in the industry
• 50 A, 100 A, or 200 A CTs can be wired for use with any circuit in the panel
• Main circuit board and adapter boards pre-mounted on a bracket...ease of installation
• Flexible installation options - CTs with up to 20 ft (6 m) leads available
