The E30 Series Solid-Core Panelboard Monitoring System provides a cost effective solution for electrical load management, making it ideally suited for applications where loads are dynamic, such as the data storage industry, lighting panels, etc.

The E30A224 kit with Advanced functionality monitors voltage, current, power and energy consumption for mains and branches in a panelboard. The accumulated information can be transmitted through the communications interface. Data updates occur roughly every two seconds to provide timely preventative maintenance information. As any circuit approaches the user-configured thresholds, alarm indicators are triggered, preventing costly downtime from overloaded circuits or failed loads.

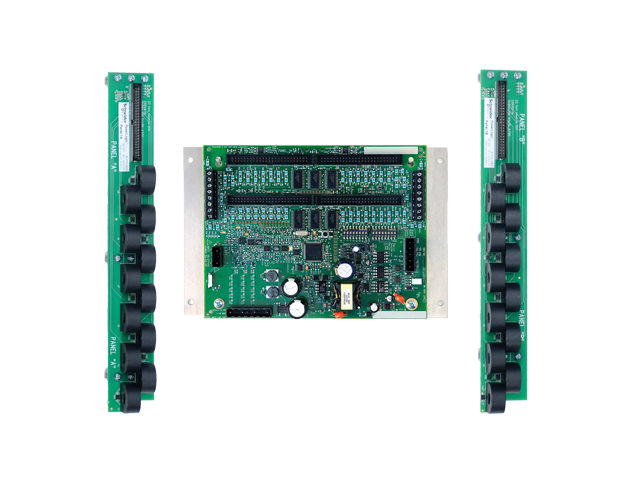

The E30A224 kit includes an Advanced main circuit board, two strips of 12 ea 100 A solid core current transducers spaced 18 mm apart and two 4 ft flat ribbon cables for connecting the CT strips to the main board. Both flat and round ribbon cables in various lengths are available for use with this product to fulfill your application needs (see CBL). CTs for monitoring mains and neutrals are sold separately (see H681x-xxxA-.3V).

APPLICATIONS

• Includes branch circuit monitoring in new constructions
• Load based cost allocation
• Overload protection
• Load management
• Load balancing
• Lighting circuits

FEATURES

A compact solution for panelboard monitoring

• IEC Class 1 metering accuracy
• Up to 126 panelboards can be monitored on one RS-485 drop...simplifies wiring
• Reports voltage, current, power and energy for mains and branches...one product covers the whole panelboard
• Monitors up to 28 circuits (24 branch circuits, one 3-phase main, one neutral) with one device...saves space
• 18 mm spaced solid-core 100 A current sensors…flexible installation
• DIN rail mounting
• 4 user-configurable alarm threshold registers and individual monitoring of all branches...improved load management
• Built-in ability to set the orientation and numbering of the circuits
• 1/4 A to 100 A monitoring...widest dynamic range in the industry
• Flexible installation options - can combine an 18” to 20 ft (6 m) ribbon cable with 20 ft (6 m) CT leads for up to a 40 ft (12 m) installation run
• 1, 2, 3 pole breaker support
