Sensaphone 1800

Quick View

Built-In: Power Failure, Temperature, Sound Level (requires optional external microphone)
Inputs: 8 - Select temperature, dry contact, or 4-20mA analog Sensaphone 1800
Outputs: 1 Relay (manual or automatic control)
Notifications: 8 numbers - Select custom voice, numeric pager, or cell phone text message
Special Features: Sealed weatherproof enclosure, Custom voice messages, ultra-low (-85°C) temperature monitoring, line seizure
Part Numbers: Sensaphone 1800 w/ Clear Door

Sensaphone 1800 w/ Clear Door and International Power Supply FGD-1800-CD-INT

Sensaphone 1800 w/ Solid Door

Sensaphone 1800 w/ Solid Door and International Power Supply

Sensaphone 1800 Functional Diagram

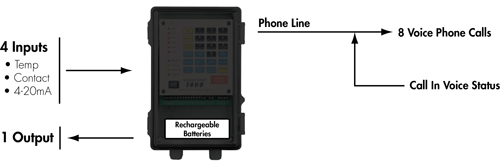

Sensaphone 1400 Functional Diagram

Sensaphone 1800

(Ideal for monitoring water treatment facilities and agricultural environments)

The Sensaphone 1800 provides a significant step up over the 800. While performing all of the functions of the 800, the 1800 comes in a sealed, weatherproof, lockable enclosure, making it suitable for harsh or corrosive environments.

Voice phone calls are customized, so that users can hear each alarm described in detail and in their own voice. The 1800 is perfect for ultra-low freezer monitoring all the way down to -85° C. Also built into the 1800 is a system that identifies who responds to any alarm phone call, and tracks respondents with a history log.

The 1800 includes an output relay so that a local device can be switched on when an alarm occurs, as well as a line-seizure feature. LEDs on the face of the 1800 afford local indication of alarm and status conditions. An additional input type, 4-20mA, not supported in the 800, is available in the 1800.

In addition to the extra channels (8), the 1800 provides a few more unique features, not available in the 400, 800, or 1400. The 1800 not only makes voice phone calls, but can send text messages to cell phones and alphanumeric pagers.
