Dry Contact Type Infra-Red Motion Detection Sensor

Product # FGD-0007

The Infrared Motion Detection sensor can be used with all Sensaphone models to monitor the movement of warm bodies in a specific area. It will cause an alarm if motion is detected. Its range of detection covers approximately forty feet of area. Multiple sensors can be wired in series to a single output.

Dry Contact Type Magnetic Reed Door and Window Switch

Product # FGD-0006

The magnetic reed switch may be used with all Sensaphone Models to detect any unauthorized entry or intrusion. They are usually installed on doors or windows to detect their opening and closing. Several magnetic reed switches may be wired in series.

50 Foot Coil of Accessory Wire

Product # FGD-0010

50ft. of 22-gauge shielded wire for connecting sensors to your sensaphone.

Dry Contact Type Spot Water Detector

Product # FGD-0013

The water detection sensor can be used with all Sensaphone models to detect the presence of water on a horizontal surface. Independently powered by internal lithium batteries. The batteries should last for approximately 3-5 years. When the batteries start to run down, the sensor will automatically cause an alarm dial out when no water is present. Multiple sensors can be wired in series to a single input.

Dry Contact Type Temp Alert Temperature Switch

Product # FGD-0022

The Temp Alert can be used with all Sensaphone models to monitor air temperature from -30° to 130°F (-34° to 54°C). Simply determine the acceptable temperature limits for your application by adjusting the temperature limit arms. When the temperature exceeds the setting, the sensor triggers an alarm. The temp alert can be mounted to any wall or vertical surface. Multiple temp alerts may be wired in parallel to a single input. It requires no power for operation and mounts easily on any flat surface.

Dry Contact Type Humidistat Humidity Switch

Product # FGD-0027

The Humidistat can be used with all Sensaphone models to detect a high or low humidity level. The device will cause your Sensaphone to activate an alarm when the humidity level reaches a set threshold. Made from high impact plastic with a brushed goldtone dial plate and a beige cover. A nylon sensing element provides long life and accurate humidity control. With a range of 10% to 60% RH level, the sensor causes an alarm when the humidity exceeds or falls below the set limit. Multiple sensors may be wired to a single input.

24V Power Supply for 4-20mA Sensors

Product # FGD-0053

A 24V power supply for use with most 4-20mA sensors. It is required when connecting the humidity transmitter to any Sensaphone that does NOT provide external 24V DC power. The Sensaphone SCADA 3000 and Express II are the only units that supply their own power.

24V Power Supply for 4-20mA Sensors w/Battery Backup

Product # FGD-0070

4-20mA transducers require power to operate. Some Sensaphone products provide 24VDC power specifically for this purpose. When using a 4-20mA transducer with a model that does not, an external power supply is required. This 4-20mA Power Supply provides up to 8 hours of battery backup if main power fails.

4-20mA Type Humidity Transmitter

Product # FGD-0052

This sensor is a space mount, low profile humidity transducer that transmits actual humidity levels to a Sensaphone for programmable high and low alarm limits. The device can be used with any Sensaphone that supports 4-20mA inputs. The 24V DC power supply is required unless used with the SCADA 3000.

Dry Contact Type PowerOut Alert Failure Switch

Product # FGD-0054

A compact power outage monitoring device to detect power failures. Easily plugs into any 110 VAC receptacle outlet for operation. Works with all Sensaphone products. Comes with 15 feet of wire.

Dry Contact Type Smoke Detector Sensor

Product # FGD-0049

The Smoke Detector with built-in relay utilizes a photoelectric sensing method and is designed for use in commercial and residential applications. The device requires hard-wired 120VAC 60Hz power. The detector features two sets of dry alarm contacts: one form-A SPST and one form-C SPDT. The detector has tandem interconnect capability allowing up to 6 devices to be connected together. A 90dBA audible horn is included. The detector can be used with all Sensaphone models.

It is also available with optional battery backup, or in 220V

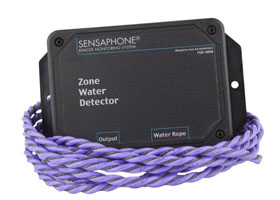

Dry Contact Zone Water Detection Sensor

Product # FGD-0056

The Sensaphone zone water detector is for detecting the presence of water on a floor or in a FALSE ceiling. It comes with 10′ of WaterRope capable of covering a larger area than the FGD-0013 water sensor. Up to ten WaterRopes can be cascaded from a single sensor for even greater coverage. Works with all Sensaphone products and operates on two AA batteries (installed).

4-20mA Type Carbon Monoxide Sensor

Product # FGD-0065

Carbon Monoxide is a highly toxic gas that has no color or odor. The Sensaphone Carbon Monoxide sensor will allow you to monitor CO levels from 0-300 ppm with any Sensaphone that will accept a 4-20mA input signal. The 1” x .5” LCD displays the PPM and menu parameters. The sensor will require a 24VDC power supply to operate (Part # FGD-0053).

4-20mA Type Air Quality Sensor

Product # FGD-0066

The Sensaphone Indoor Air Quality sensor will allow you to monitor levels of pollution from 0–100% with any Sensaphone that will accept a 4-20mA input signal. Popular applications include schoolrooms, office buildings, and parking garages. The Air Quality sensor uses a tin dioxide semiconductor sensor to detect oxidizable gases and is specially designed to have high sensitivity to gaseous organic materials which are components of indoor air pollutants. These air contaminants include cigarette smoke, cooking exhaust, automobile exhaust, solvents and many others. The sensor will require a 24VDC power supply to operate. (Part # FGD-0053)

Surge Suppressor for Power and Phone

Product # FGD-0067

This surge suppressor offers complete AC and phone line surge suppression. The retractable plug prevents scratching of expensive portable electronics. A set of two RJ11 telephone line suppression jacks protect dialup and voice/modem lines. The suppressor offers two total outlets in a space saving direct plug-in format and diagnostic LEDs to warn of problems.

4-20mA Type Carbon Dioxide (CO2) Sensor

Product # FGD-0068

The Sensaphone Carbon Dioxide sensor will monitor levels of Carbon Dioxide from 0-2,000ppm with any Sensaphone that will accept a 4-20mA input signal. The sensor will need a 24VDC power supply to operate (Part # FGD-0053)

2.8K Type Room Temperature Sensor

Product # FGD-0100

This sensor enables monitoring temperatures at a location away from a Sensaphone unit. It will measure and report the exact temperature back to the Sensaphone. The Sensaphone can be programmed to trigger an alarm when conditions exceed the set high or low temperature limits. This model is recommended to be located in clean, dry environment. For outdoor use model FGD-0101 is recommended.

2.8K Type Weatherproof Temperature Sensor

Product # FGD-0101

This sensor enables monitoring temperatures at a location away from a Sensaphone unit. It will measure and report the exact temperature back to the Sensaphone. The Sensaphone can be programmed to trigger an alarm when conditions exceed the set high or low temperature limits. It may be mounted anywhere air temperatures need to be measured and is suitable for use in wet, dirty environments.

2.8K Type Ultra Low Temperature Sensor

Product # FGD-0101-TEF

The 2.8K Ultra Low Temperature sensor enables monitoring temperatures at a location away from a Sensaphone unit. The sensor's wire will withstand temperatures down to -85°C. It will measure and report the exact temperature back to the Sensaphone unit to which it is attached. The Sensaphone can be programmed to trigger an alarm when conditions exceed the set high or low temperature limits. It may be mounted anywhere air temperatures need to be measured and is suitable for use in wet, dirty environments.

10K Type Remote Weatherproof Temperature Sensor

Product # FGD-0102

This sensor enables monitoring temperatures at a location away from a Sensaphone unit. It will measure and report the exact temperature back to the Sensaphone. The Sensaphone can be programmed to trigger an alarm when conditions exceed the set high or low temperature limits. It may be mounted anywhere air temperatures need to be measured and is suitable for use in wet, dirty environments.

10K Type Indoor Decorator Zone Temperature Sensor

Product # FGD-0103

The 10K indoor decorator zone temperature sensor offers precision room temperature sensing in an attractive wall-mounted enclosure. Accurate to 0.36°F (0.2°C) with a sensing range of 35° to 140°F. The indoor decorator comes in a beige plastic enclosure, with a tan metal face plate. The sensor is designed to be wall-mounted indoors where appearance is important. The separate base plate may be mounted directly to the drywall or on a standard electrical outlet box without adapters. The cover is secured with tamper resistant hex screws.

10K Type Outdoor Air Temperature Sensor

Product # FGD-0104

The 10K Outdoor Air Weatherproof Temperature sensor is a sensitive temperature element with a stainless steel tube sheathe. It is mounted inside a ventilated, treated weather-resistant PVC shield to minimize radiant energy effects and mounted on a weatherproof outlet box for easy outdoor installation. Accurate to ±0.36°F (0.2°C) with a sensing range of -30° to 140°F. Eight feet of 24AWG wire is included.

10K Type Immersion Temperature Sensor

Product # FGD-0105

The 10K Immersion temperature sensor measures the temperature of fluids inside a pipe. It’s constructed of brass WEL-B thermowell (which screws into a customer-supplied 0.5” NPT saddle or Thredolet® fitting in a pipe). It fits into a thermowell via a brass 0.125” NPT fitting.

2.8K Type Temperature Sensor in Glass Bead Vial

Product # FGD-0107

This glass bead filled vial will buffer any momentary fluctuations that may cause a preliminary alarm dial out, such as defrost cycles, opening of doors, and fans circulating air. The glass beads will slow the response time of the sensor allowing normal daily operations to occur without having an alarm.

2.8K Type Ultra Low Temperature Sensor in Glass Bead Vial

Product # FGD-0107-TEF

The FGD-0107-TEF is ideal for cold storage temperature monitoring where temperatures are consistently under -28°C. The glass bead filled vial will buffer any momentary fluctuations that may cause a preliminary alarm dial out, such as defrost cycles, opening of doors, and fans circulating air. The glass beads will slow the response time of the sensor allowing normal daily operations to occur without having an alarm initiated.

J Type Thermocouple/4-20mA Converter

Product # FGD-0220

The thermocouple to 4-20mA converter is useful when monitoring very high or very low temperatures that can not be monitored with a standard Sensaphone temperature sensor. Thermocouples are available in a variety of packages that may be perfectly suited to your measuring application. Each thermocouple input module provides a single channel of thermocouple input which is filtered, isolated, amplified, linearized and converted to a 4-20mA output. Isolation is provided by transformer coupling, using a proprietary technique to suppress transmission of common mode spikes or surges. The modules have excellent stability over time and do not require recalibration.

Dry Contact Type Float Switch

Product # FGD-0222

The FGD-0222 float switch is a plastic side mounted float switch that is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming.
