Sensaphone SAT4D
Quick View
| Built-In: | Battery, GPS Location | |
| Inputs: | Four dry contacts |
 |
| Outputs: | None | |
| Notifications: | Eight voice phone calls, plus six e-mail messages | |
| Special Features: | Two status messages per day, 3+ year AA Lithium Batteries | |
| Part Numbers: | Sensaphone SAT4D Remote Satellite Monitoring System FGD-SAT4D Sensaphone SAT4D One Year Communications Service FGD-SAT1Y |

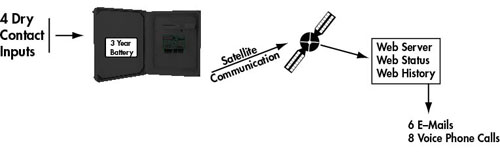

Sensaphone SAT4D Functional Diagram
Sensaphone SAT4D Remote Satellite Monitoring System
Remote Satellite Monitoring with 100% Coverage
The SAT4D System Allows you to Monitor Anything, Anywhere, and know where it is.
Watching over a remote site can be a challenge when the location is very remote. The New Sensaphone SAT4D is designed to monitor remote sites no matter where they are located. Instead of relying on phone lines or cell phone services which are not always available, the SAT4D uses direct satellite communications. The result is 100% communication coverage across the United States as well as many other countries, too. No need to worry about cell phone coverage maps, which carriers are in the area, or analog vs. digital support. It works everywhere, plain and simple.
Not only does Sensaphone make your communication easy, but it also takes away your power source worries, too. The new SAT4D remote monitoring system requires no power at all! That's right. Mount it, connect your dry contact sensors, and walk away. The SAT4D runs on 4 AA Lithium batteries that will operate for at least 3 years without power. Place it anywhere, and only come back every three years to change the batteries.
The Sensaphone SAT4D can monitor up to 4 dry contact inputs for alarms. When an alarm occurs, a message is sent via satellite that is delivered to the Sensaphone SAT4D website. From there, up to eight custom voice phone calls are made to notify the appropriate personnel of the alarm. Up to eight SMS text messages can also be sent for alarms. In addition to sending out alarm events, the SAT4D will automatically send two status reports per day to the website. You can log into your account on the SAT4D website at any time to check the latest status, to check previous alarm events, or to make programming changes.
In addition to the remote monitoring and alarm notification features, the SAT4D also includes GPS location technology. This allows the option to monitor mobile assets, or just the convenience of seeing exactly where all of your remote sites are located.
