Sensaphone CELL682
Quick View
| Inputs: | 6 analog inputs and 8 dry contact inputs | |
| Outputs: | 2 relay |  |
| Notifications: | E-mail messages, cell phone and pager text messages and custom voice phone calls | |
| Special Features: | The CELL682 is packaged for outdoor use in a Nema-4X housing, and even includes battery backup. A website is provided for status, history, alarm response programming, and manual output control. | |
| Part Numbers: | Sensaphone CELL682 Monitoring System w/ Clear Door FGD-CELL682-CD Sensaphone CELL682 Monitoring System w/ Solid Door FGD-CELL682-SD Sensaphone CELL682 Monitoring System w/ Clear Door for Canada FGD-C682-CD-CAN Sensaphone CELL682 Monitoring System w/ Solid Door for Canada FGD-C682-SD-CAN Sensaphone CELL682 One Year Communication Service FGD-CELL1Y |

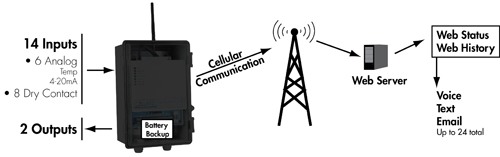

Sensaphone CELL682 Functional Diagram
Sensaphone CELL682 Wireless Monitoring System
The ultimate choice for remote monitoring and control where telephone lines are non-existent or too expensive.
The latest addition to the Sensaphone wireless series of remote monitoring solutions is the Cell682. It can be placed at a remote, unmanned facility to detect a variety of potential equipment problems, and can even perform some output control. It uses standard cellular technology to communicate with the Sensaphone servers. If a telephone line is not already in place, the cellular communications in the Sensaphone Cell682 can provide a convenient, reliable, and cost effective method to monitor a remote facility.
The Sensaphone Cell682 provides an assortment of sensor input options to handle many different types of sensors and conditions to monitor. Two relay outputs are also included in the Cell682 for local control.

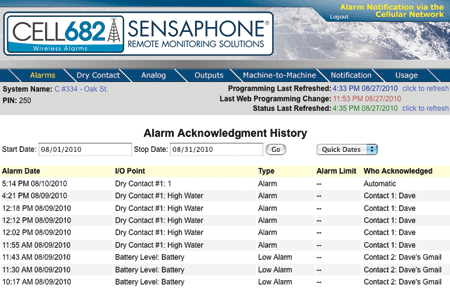

A full alarm history is available on the CELL682 website

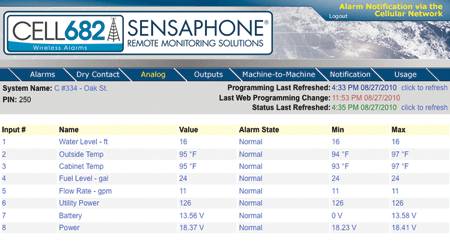

Status of all conditions are available anytime online
