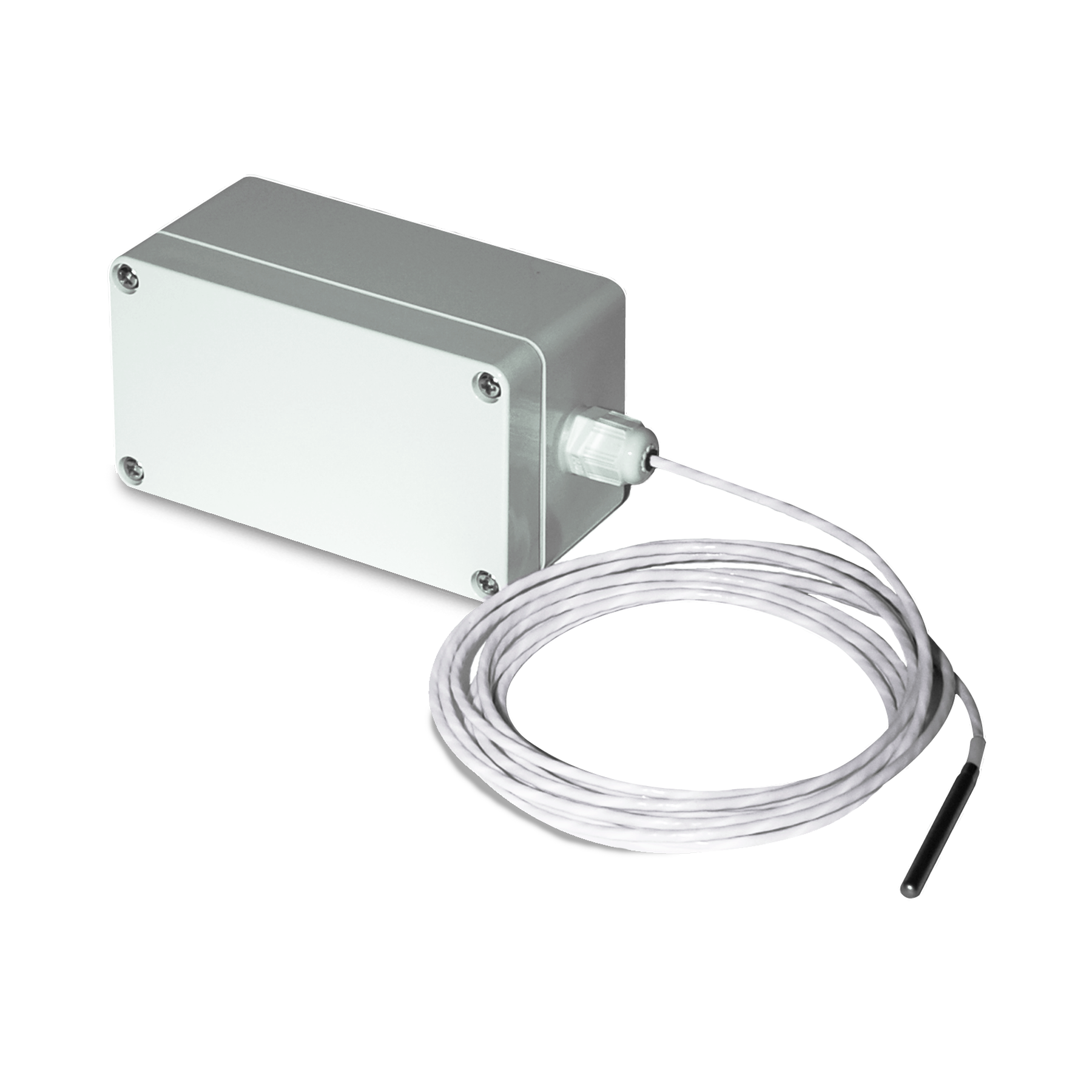

SST5630 (Wireless Remote/Strap-on Temperature Sensor for Low
Temp)
![SST5630](../images/aciSST5630small.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
The mesh network SST5630 is a battery operated spread spectrum wireless remote/strap-on temperature sensor. The sensor is encapsulated in a 0.25” O.D. 304 stainless steel probe (2” probe length) for single point pipe temperature monitoring. Series 2000 wireless sensors utilize reliable Spread Spectrum Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The Series 2000 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or site survey tools. Together with the ACI Series 2000 receivers and controllers, the ACI wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. The maximum radio transmission distance is dependent on building type. The maximum open- air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The SST5630 is covered by ACI's Two (2) Year Limited Warranty.
