Humidity Banner

A/RH2%-XX-SP

A/RH2-O
Product data sheet: pdfRH-T Resistive.pdf
Product data sheet: pdfRH-X XX Install.pdf

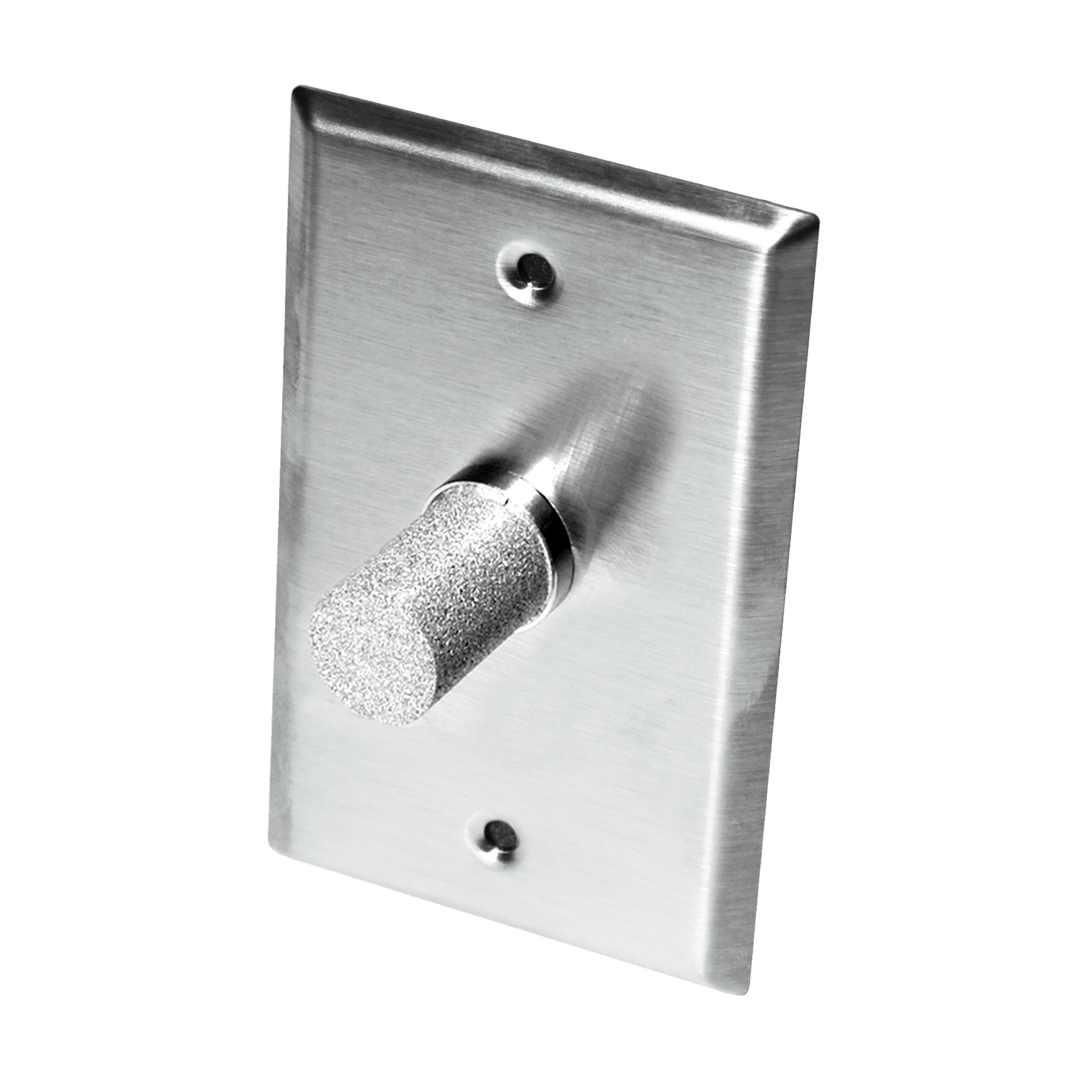

Product photo: image picStainless Plate.png
Product Dimensions: pdfRH-SP
Rev 1.pdf		 dxf picRH-SP
Rev 1.dxf

The A/RH Series Relative Humidity Transmitters, convert a resistance change to a linear 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC output. The Advanced Ceramic Technology design overcomes the limitations of other resistance-based humidity sensors that utilize water-soluble polymer coatings. The Advanced Ceramic Technology enables these sensors to recover fully from condensation. This also allows the sensor to maintain its accuracy over a longer period of time.

This unit is combined with a temperature sensor to provide added installation flexibility. Temperature outputs include a wide variety of thermistors, rtds, semiconductors and temperature transmitters. Please see the cut sheet listed above the comprehensive listing of temperature outputs that are available.

Each A/RH Series humidity transmitter is calibrated using a NIST Traceable Temperature and Humidity Chamber.

Example Part Number: A/RH2-10K-AN-SP
