A/TUCH2 (Backlit Display)
| Product data sheet: |  A/TUCH2 Datasheet.pdf |
| Product instruction: | A/TUCH2 Instructions.pdf |

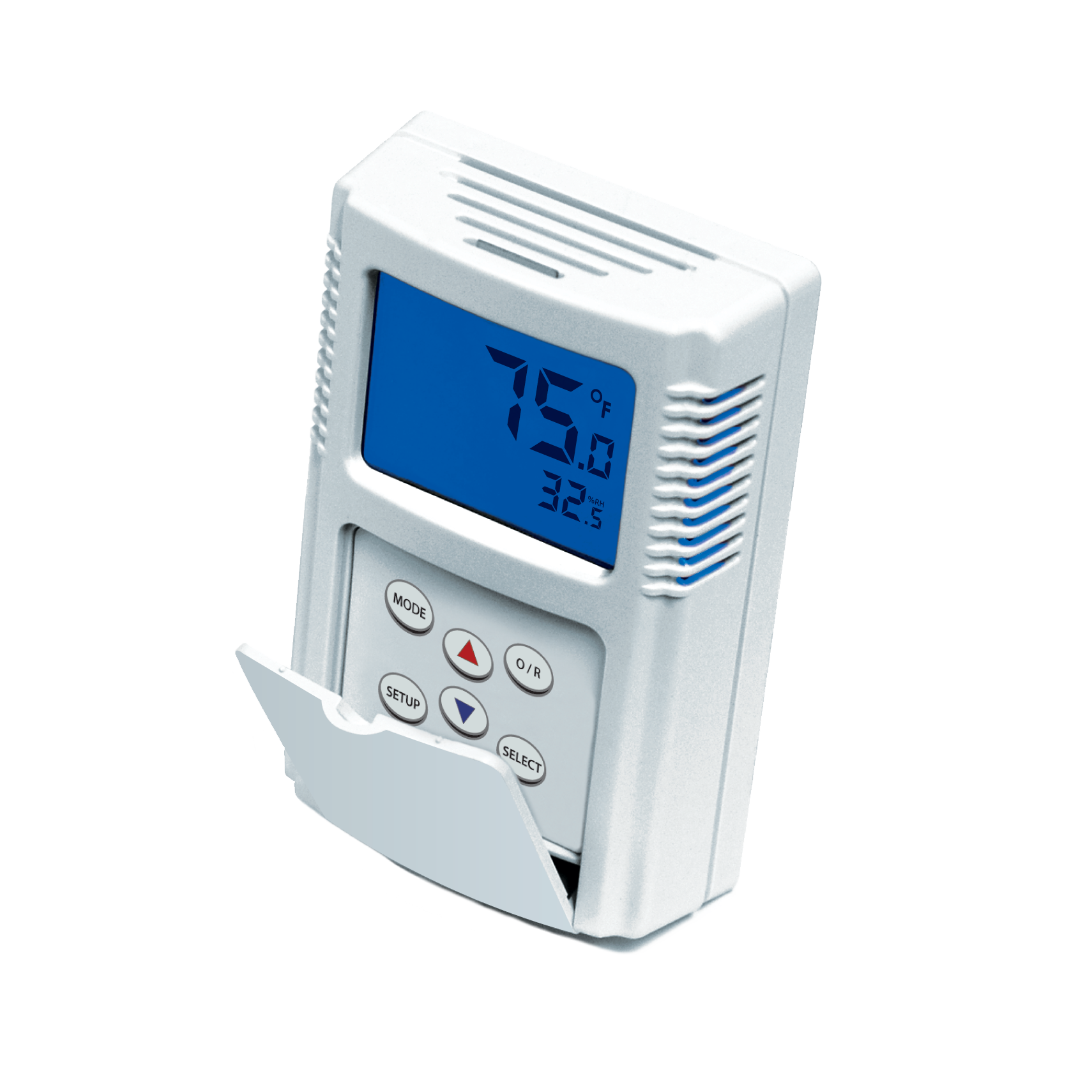

| Product photo: |  A/TUCH2.png |
The microprocessor-based A/TUCH2 room unit combines temperature and relative humidity space monitoring, with temperature and relative humidity setpoint function options, into an attractive wall-mount package. The temperature output can be configured to have a resistance signal or standard analog output signals.
The A/TUCH2 Room Unit uses the same technology as the A/RH Series for its relativity humidity sensor. Both the temperature and relative humidity functions can be adjusted in the field using single-point offsets, the temperature in 0.5°F (0.2°C) increments and the relative humidity in 0.5% RH increments.
The A/TUCH2 supports two setpoint functions that can be configured for temperature and relative humidity. The setpoint output is available in configurable resistance spans, or using one of the standard analog output signals. An override function can be configured to short either sensor output, or the setpoint output. Additionally, the override can be configured as a dry contact signal. An optional override-feedback input accepts a feedback signal from the Building Automation System to indicate the occupied/unoccupied mode on the LCD.
The A/TUCH2 Series is covered by ACI's Five (5) Year Limited Warranty, which is located in the front of ACI'S SENSORS & TRANSMITTERS CATALOG or can be found on ACI's web site, which is: www.workaci.com.
