PTP (Pressure to Analog signal Interface Device)
| Product data sheet: |  PTP.pdf |
|
| Product instruction: | PTP.pdf |
|

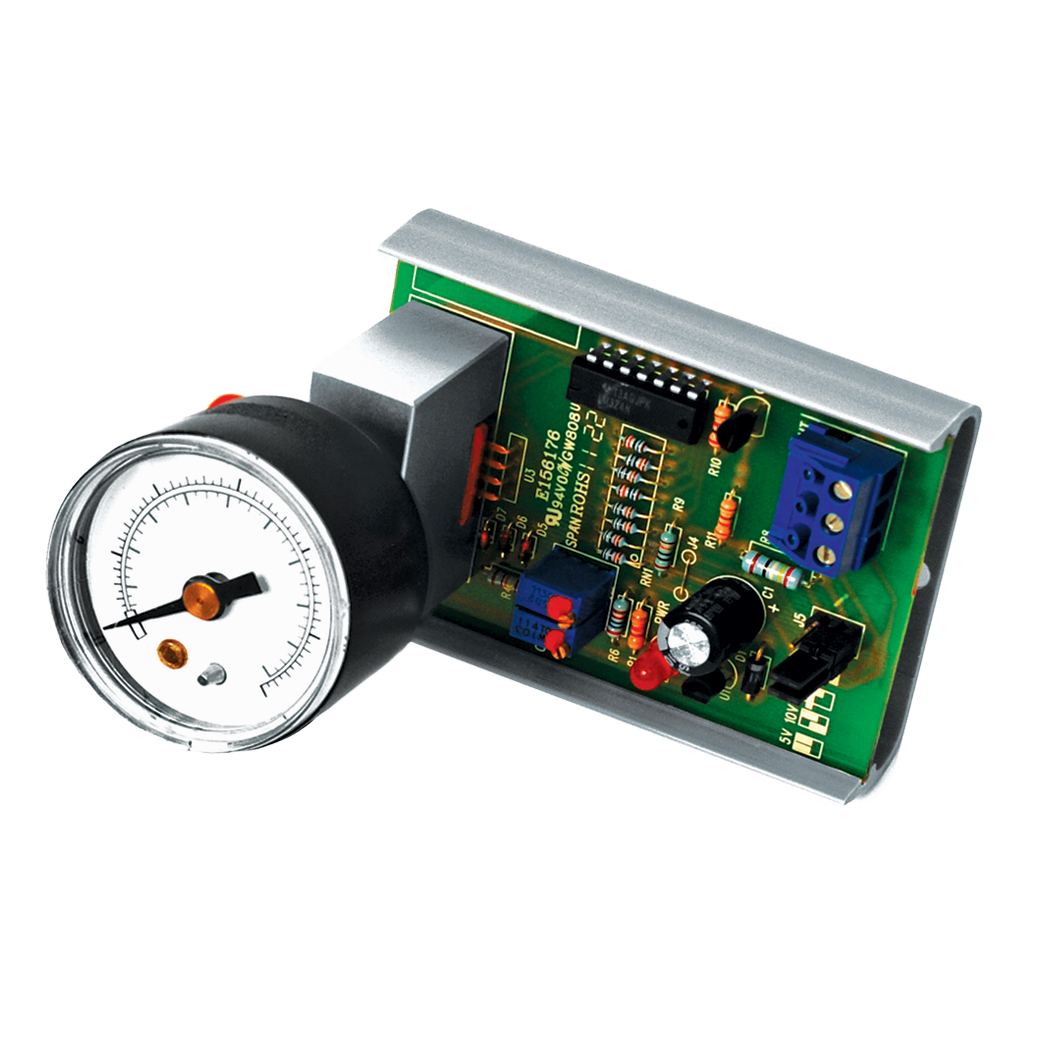

| Product photo: |  PTP.png |
|
| Product Dimensions: | M0000236 Rev 1.pdf |
 M0000236Rev 1.dxf |
Three models of the PTP accept either a 3 to 15, 3 to 30, or 0 to minus 7.5 psig pneumatic pressure input and convert it to one of four proportional analog output ranges of 1-5, 2-10, 3-15 VDC or 4-20 mA which are jumper shunt selectable. The PTP is a positive current output device that is fully temperature compensated. A plugged gauge port is provided in the aluminum manifold for local mechanical indication via an optional 0 to 30 psi guage. The PTP is covered by ACI's Two (2) Year Limited Warranty.
