CO-D
| Product data sheet: |  CO-NO2.pdf |
|
| Product instruction: | CO.pdf |
|
| Product photo: |  CO.gif |
|
| Product Dimensions: | CO-D Rev 1.pdf |
 CO-DRev 1.dxf |
| Additional Information: | GAS AREA.pdf |

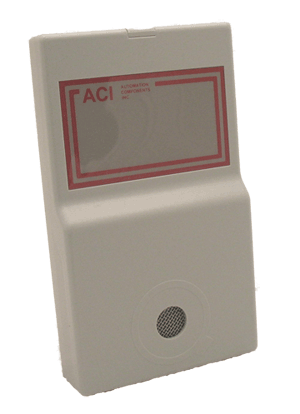

The CO transmitter monitors carbon monoxide (CO) levels in industrial environments. These units are intended to be used for the continuous monitoring of vehicle exhaust in non-hazardous areas.
The CO uses a wide spectrum, long life electrochemical sensor to measure the amount of carbon monoxide in the environment. It is offered with an operating range of 0 to 125 ppm. The carbon monoxide transmitter provides a linear 4 to 20 mA or 2 to 10 VDC output on a 4-wire system when using an AC or DC supply voltage to power the transmitter.
Both the Room and Duct CO transmitters are offered in a standard NEMA 1 rated ABS Polycarbonate plastic enclosure. An optional NEMA 4X watertight and dust proof enclosure is only available with the CO room transmitter. Other options include an LCD display with (2) SPDT Form 1C relays and a buzzer.
