TSENSE (Analog & BACnet for CO2, Temp, & RH)
| Product data sheet: |  TSENSE.pdf |
| Product Instruction: | TSENSE Instructions.pdf |

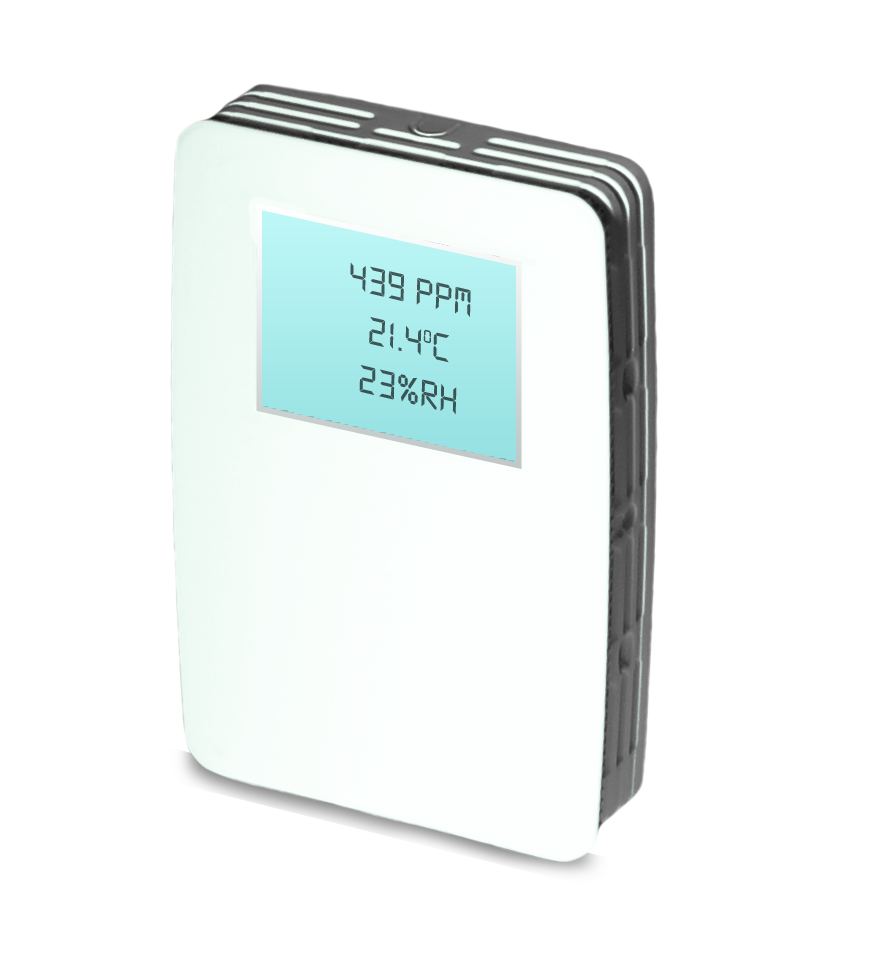

| Product photo: |  TSENSE Room.png |
| Additional Information: | TSENSE User Manual BACnet Info.pdf |
CO2 Sensor with Temperature, RH & Display
TSENSE is an advanced and versatile 3 in 1 transmitter. Designed for installation in the air conditioned zone, it measures CO2 concentration, temperature and humidity in the ambient air. The data is transmitted to a BMS system or stand-alone controller using industry standard output signals and communications protocols, including BACnet™. TSENSE combines all the necessary elements for effective climate control in commercial office buildings, hospitals, hotels, schools and other facilities, allowing for a comfortable and healthy environment for the occupants. It is flexible in design and is suitable for use in many different energy efficient ventilation strategies.
- 0 to 10 VDC outputs based on 0–2000 ppm, 32-122°F, 0-95% RH
- Relay On/Off, based on 1000/900 ppm (CO2)
- Life exepectancy based on 15 years (typical)
- Backlit LCD displays: CO2 (ppm), Temperature (°F), and Humidity (%RH)
- Touch display menu system
Environmental conditions covered: Carbon Dioxide, Temperature, and Relative Humidity
The TSENSE Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's web site, http://workaci.com/content/warranty-info.
