WP
| Product data sheet: |  WP Low.pdf |
| Product instruction: | wp.pdf |

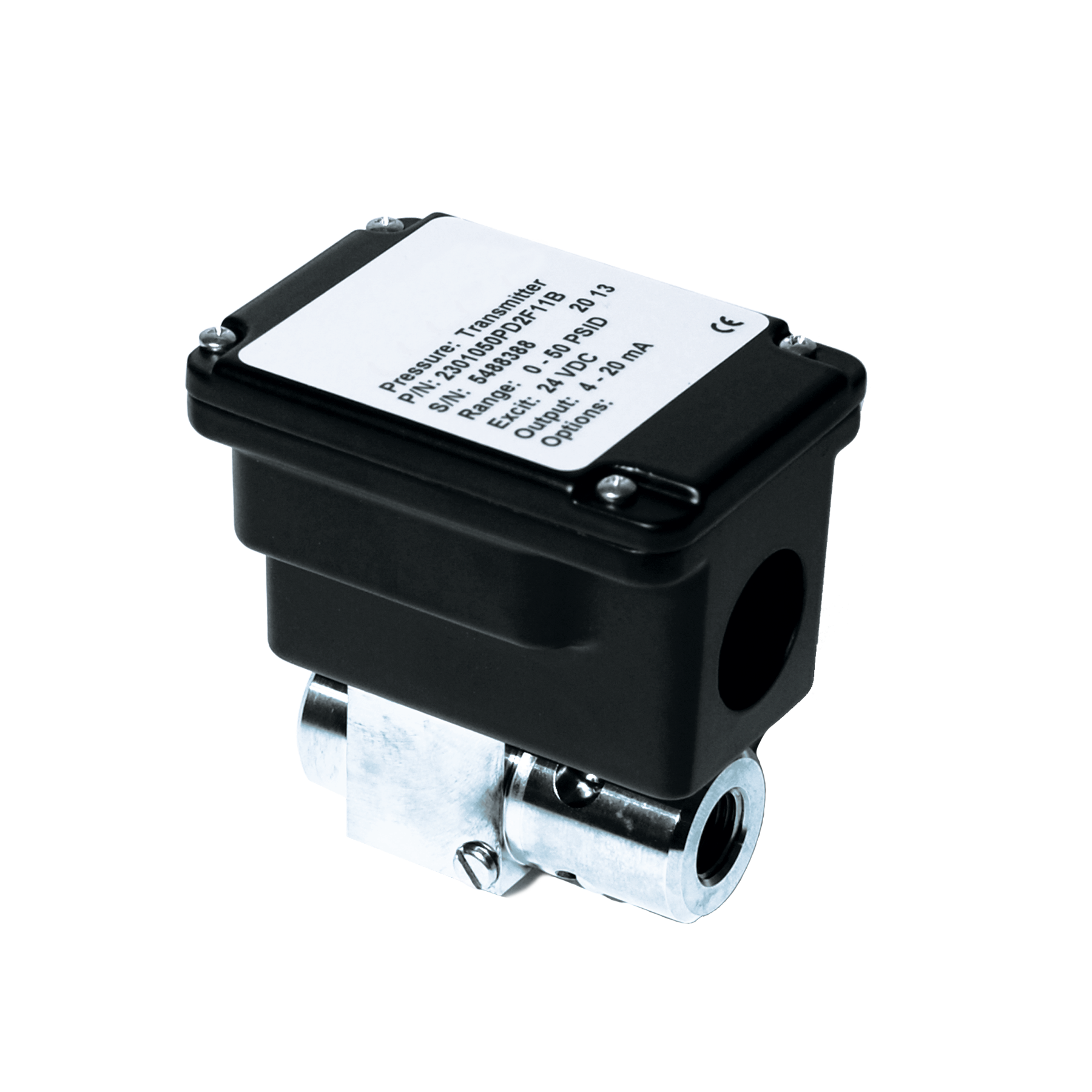

| Product photo: |  WP.png |
The WP Series is a two-wire wet to wet differential pressure transducer. The WP is ideally suited for use with any harsh media, wet or dry, that is compatible with 17-4 PH and 300 series stainless steel. The WP has outputs of 4 to 20 mA, 0 to 5, or 0 to 10 VDC output signal. To ensure an accurate linear analog output, the WP contains circuitry to provide signal conditioning, reverse polarity protection, and temperature compensation as an integral part of the device.
Built for remote installation, the WP is a rugged unit, housed in a splash and dust proof NEMA 4/IP65 rated stainless steel enclosure. Both of the input pressure ports will accept a 1/4” NPT Male fitting. The A/WP pressure transducers are available in ranges from 0 to 1 PSID all the way up to 0 to 100 PSID. Bi-Directional ranges are available.
Sample Part Numbers:
WP(0-10)-10 or WP(0-100)-20-3V
