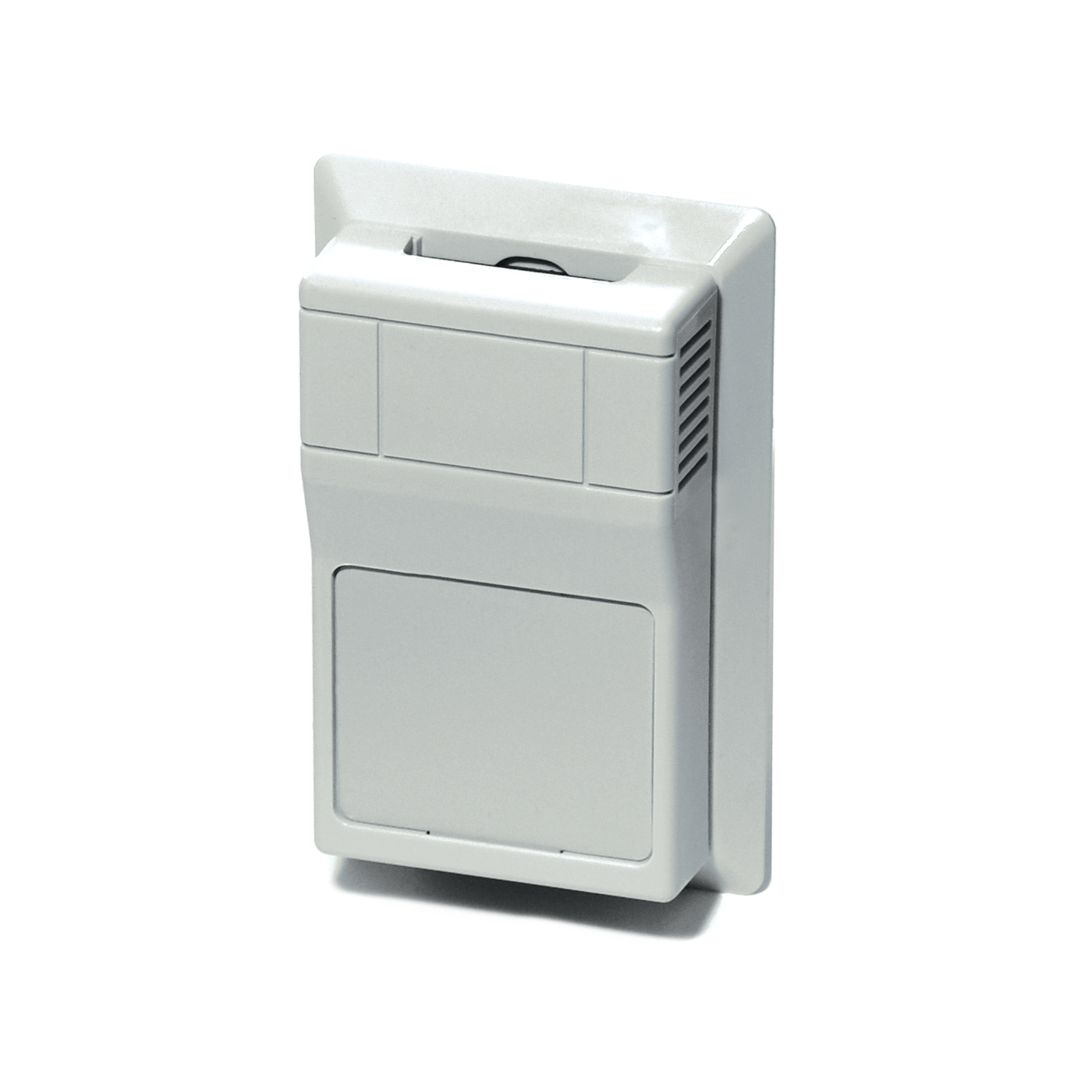

WH2630 (Wireless Wall Humidity plus Temperature sensor option)
| Product data sheet: |  WH2630.pdf |
| Product instruction: | WH2630 Instruction.pdf |
| Product photo: |  WH2630.png |
| Additional Information: | WH2630.pdf |
The WH2630 is a battery operated spread spectrum wireless wall humidity and temperature sensor. Series 2000 wireless sensors utilize reliable Spread Spectrum Mesh Network Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The WH2630 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or site survey tool. Together with the ACI Series 2000 receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. The maximum radio transmission distance is dependent on building type. The maximum open-air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The WH2630 is covered by ACI's Two (2) Year Limited Warranty.
| WH2630 * | WH2630A (Wireless Humidity (3%) Sensor) |
| WH2630AR (Wireless Humidity (3%) Sensor)(Ruggedized Enclosure) | |
| WH2630ARP (Wireless Humidity (3%) Sensor)(Ruggedized Enclosure, External Link Button) | |
| WH2630B (Wireless Humidity (3%) & Temperature Sensor) | |
| WH2630BR (Wireless Humidity (3%) & Temperature Sensor)(Ruggedized Enclosure) | |
| WH2630BRP (Wireless Humidity (3%) & Temperature Sensor)(Ruggedized Enclosure, External Link Button) |
| WH2630 Intervals | Every 75 Seconds |
| Every 300 Seconds |
