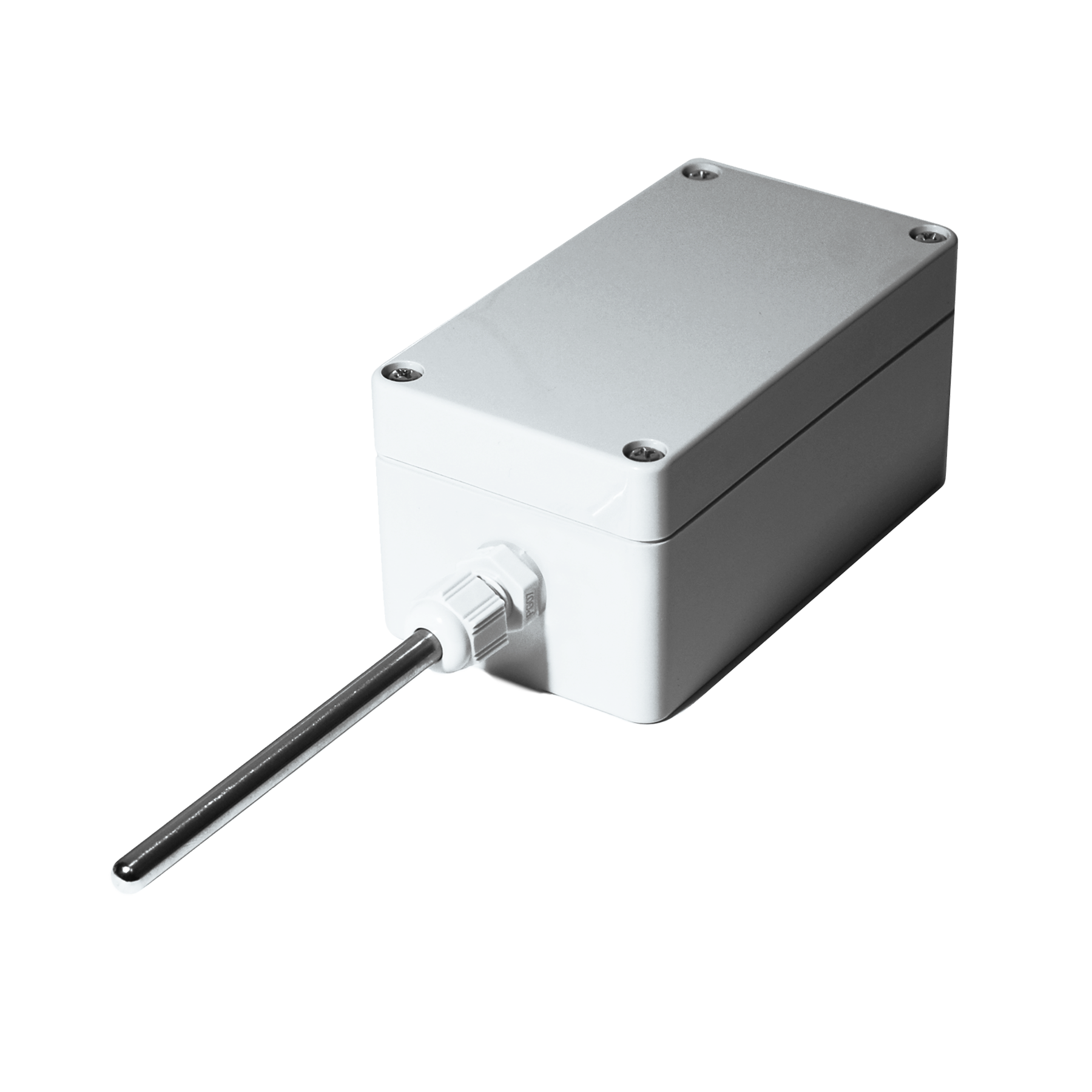

OST2630 (Wireless Compact Outside Air Temperature Sensors)
![OST2630](../images/aciOST2630small.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
The mesh network OST2630 is a battery operated compact wireless outside air temperature sensor. The sensor is housed in a NEMA4 enclosure and can be mounted anywhere in the shaded area outside of a building. If needed the distance from the sensor to the receivers can be extended using the RR2552 repeater. Series 2000 wireless sensors utilize reliable Spread Spectrum Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The Series 2000 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or site survey tools. Together with the Series 2000 receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. The maximum radio transmission distance is dependent on building type. The maximum open air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The OST2630 is covered by ACI's Two (2) Year Limited Warranty.
