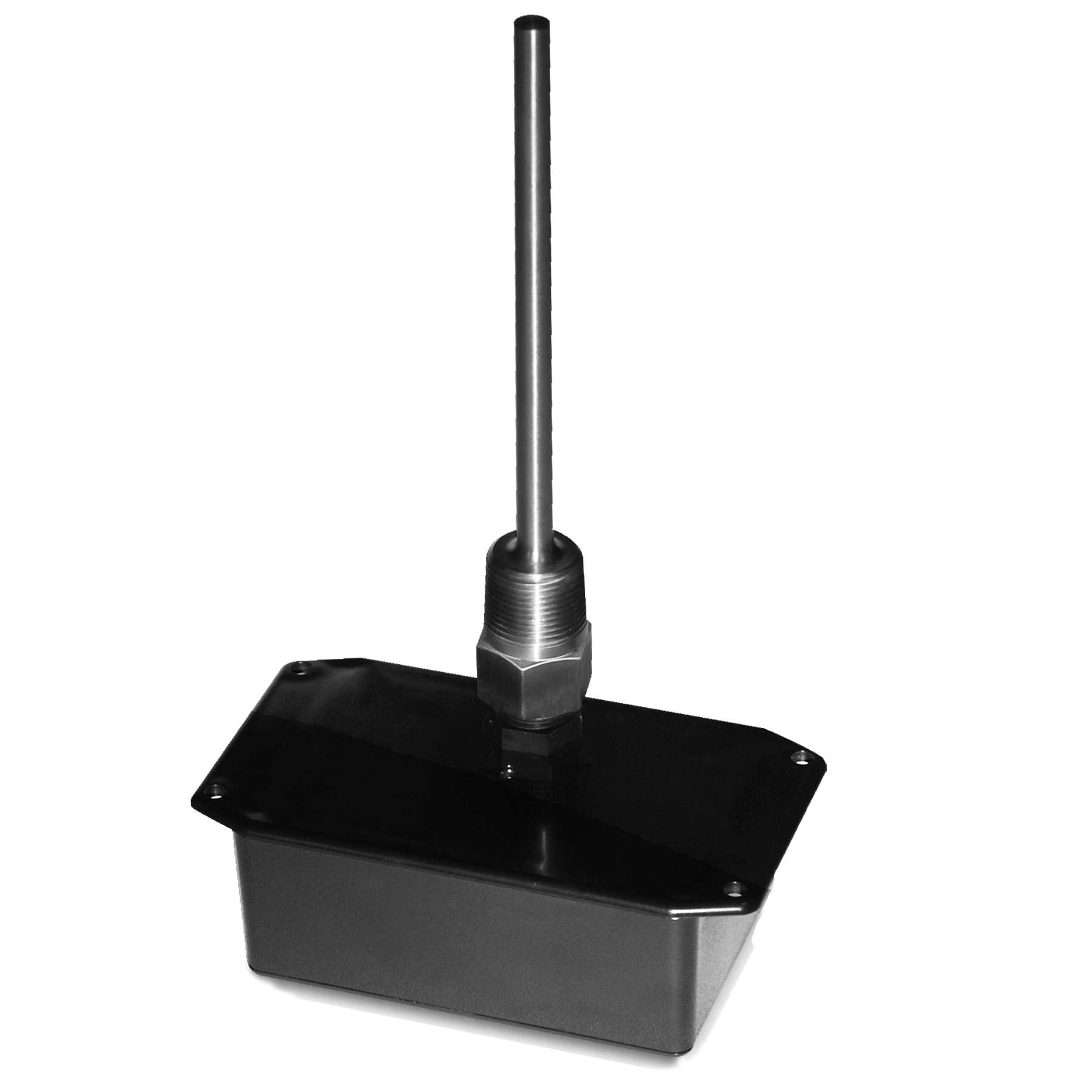

FT2630 (Wireless Immersion Temperature Sensors for water &
steam Applications)

---

The FT2630 is a battery operated spread spectrum wireless immersion temperature sensor for fluid temperature applications. The sensor is encapsulated in a 0.25” O.D. 304 stainless steel probe. The sensor assembly has a ½” NPT fitting to be mounted into the thermowell. Thermowells with brass or 304 stainless steel materials are available for different fluid applications. Series 2000 wireless sensors utilize reliable Spread Spectrum Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The Series 2000 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or site survey tools. Together with the Series 2000 receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, DDC control system or panel. The FT2630 is covered by ACI's Two (2) Year Limited Warranty.

FT2630 *	FT2630A (Standard)
	FT2630AE (NEMA 4X Enclosure)

FT2630 Probe Length	02 (2.5")
	04 (4")
	06 (6")

FT2630 Thermowell

SS (304 Stainless Steel)

FT2630 Intervals	Every 75 Seconds
	Every 300 Seconds
