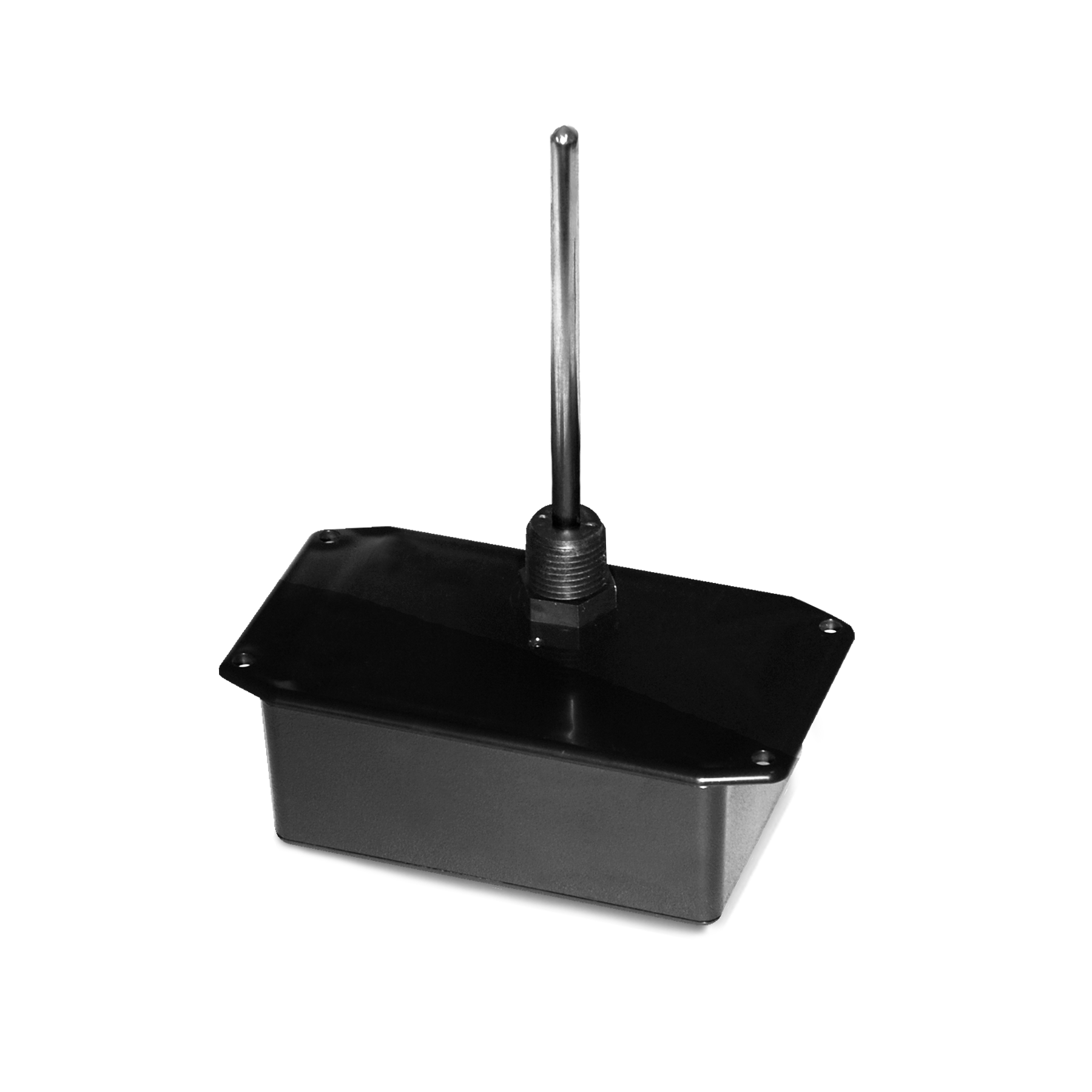

DT2630 (Wireless Duct Temperature Sensors)

---

The mesh network DT2630 is a battery operated spread spectrum wireless duct temperature sensor. The sensor is encapsulated in a 0.25” O.D. 304 stainless steel probe with various probe lengths (4”, 6”, 8” 12” & 18”) for single point duct temperature monitoring. Series 2000 wireless sensors utilize reliable Spread Spectrum Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The Series 2000 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or site survey tool. Together with the Series 2000 receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, or DDC control system or panel. The maximum radio transmission distance is dependent on building type. The maximum open-air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The DT2630 is covered by ACI's Two (2) Year Limited Warranty.

DT2630 *	DT2630A (Wireless Duct Temperature Sensor)
	DT2630AE (Wireless Duct Temperature Sensor)(NEMA 4X Enclosure)

FT2630 Probe Length	04 (4")
	06 (6")
	08 (8")
	12 (12")
	18 (18")

DT2630 Intervals	Every 75 Seconds
	Every 300 Seconds
