DH2630 (Wireless Humidity plus Temperature Duct Sensor Option)
| Product data sheet: |  DH2630.pdf |
| Product instruction: | DH2630 Instruction.pdf |

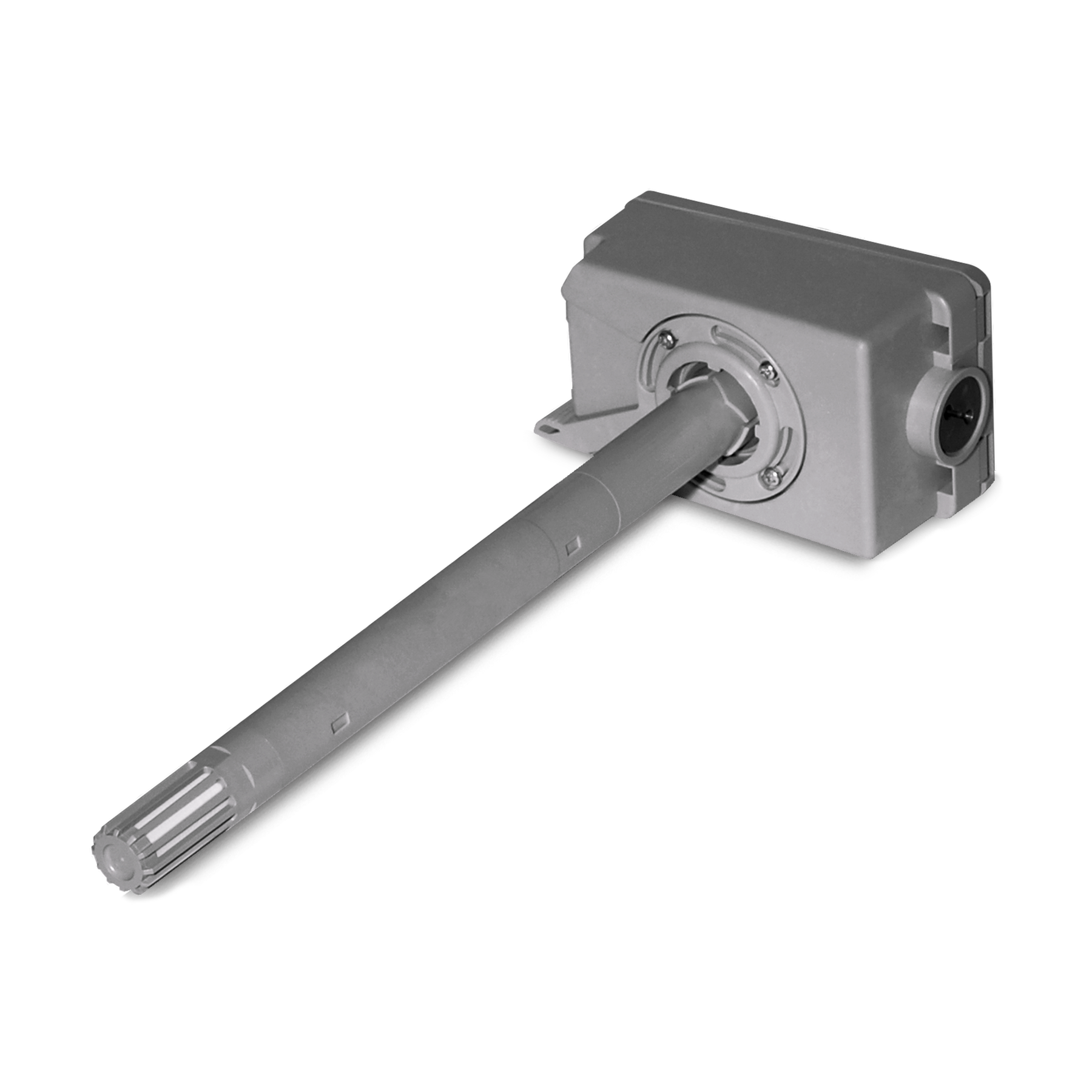

| Product photo: |  DH2630.png |
The mesh network DH2630 is a battery operated spread spectrum wireless duct mounted humidity (and temperature) sensor. The sensor is encapsulated in a 9.7” long plastic probe and is available with humidity only (DH2630A) and humidity and temperature (DH2630B, C) models. Series 2000 wireless sensors utilize reliable Spread Spectrum Mesh Network Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The WH2630 sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. There is no need for special wireless installation equipment or tool. Together with the 2000 Series receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, or DDC control system or panel. The maximum radio transmission distance is dependent on building type. The maximum open- air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The DH2630 is covered by ACI's Two (2) Year Limited Warranty.
| DH2630 * | DH2630A (Duct mounted 3% humidity sensor with a 9.7" sensing probe) |
| DH2630B (Duct mounted 3% humidity sensor & temperature sensor) (-40°F to 200°F)(9.7" sensing probe) |
| DH2630 Intervals | Every 75 Seconds |
| Every 300 Seconds |
