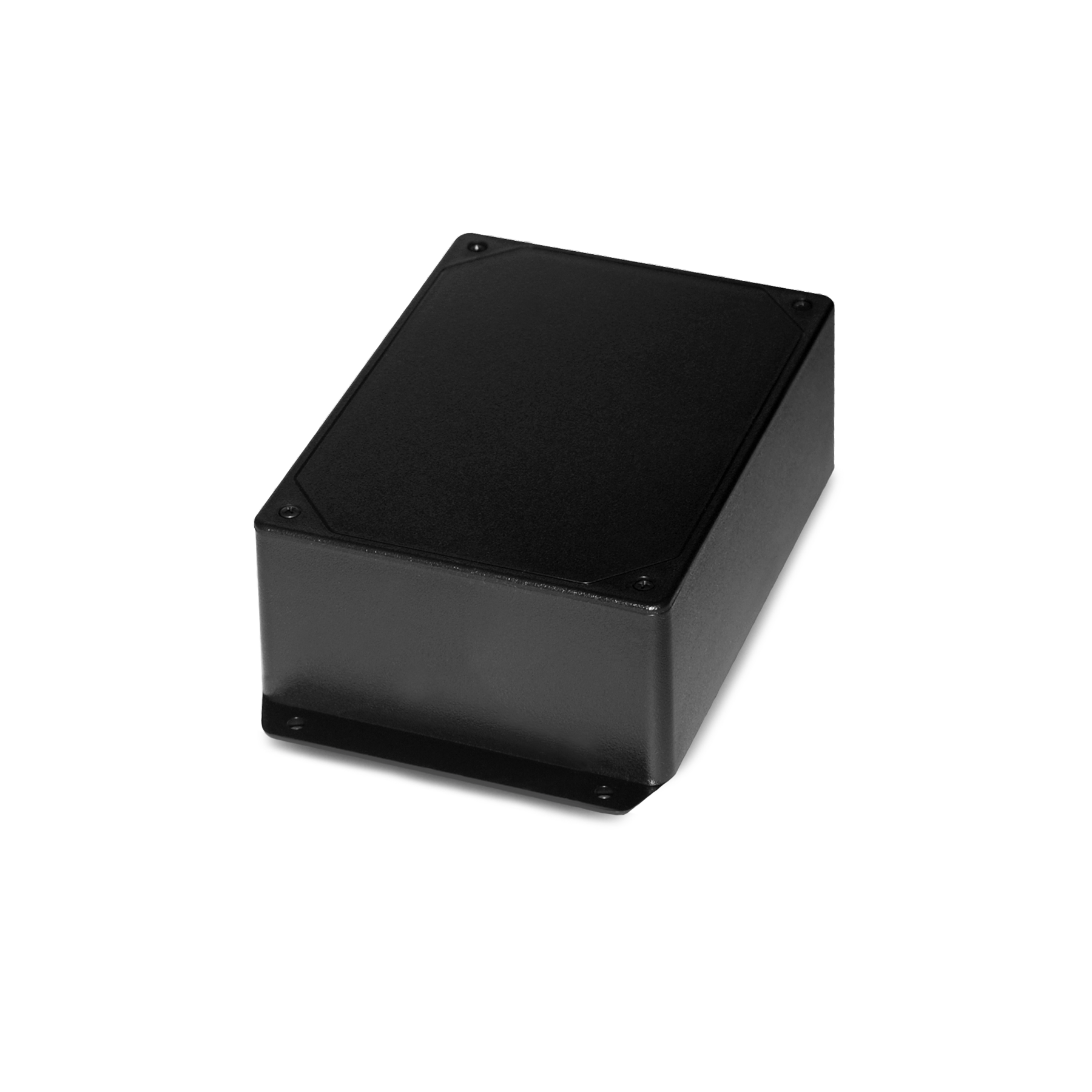

RM2432D (Four Analog and Four Digital Outputs)
![RM2432D](../images/aciRM2432Dsmall.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
Additional Information: | ![]() |
The RM2432 wireless receiver utilizes reliable Spread Spectrum Mesh Network Radio technology. Together with other wireless sensors and controls, the system can be used to transmit remote sensor readings, status/alarm indications and control signals wirelessly. It is compatible with any control systems or DDC panels that accept 0-10VDC or 0-5VDC inputs. Up to eight (8) separate wireless sensor transmitters can be used with one RM2432D. The maximum radio transmission distance is dependent on building type. The maximum open-air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. Generally a wireless system will cover at least three floors - one floor above and one floor below the receiver location. In some buildings with favorable transmission characteristics the system may cover more floors. Wireless sensor transmitters should be installed within 200 to 500 feet of the RM2432 receiver. RR2552 signal repeaters can be installed as needed to increase transmission distance between sensors and receivers. The RM2432D is covered by ACI's Two (2) Year Limited Warranty.
