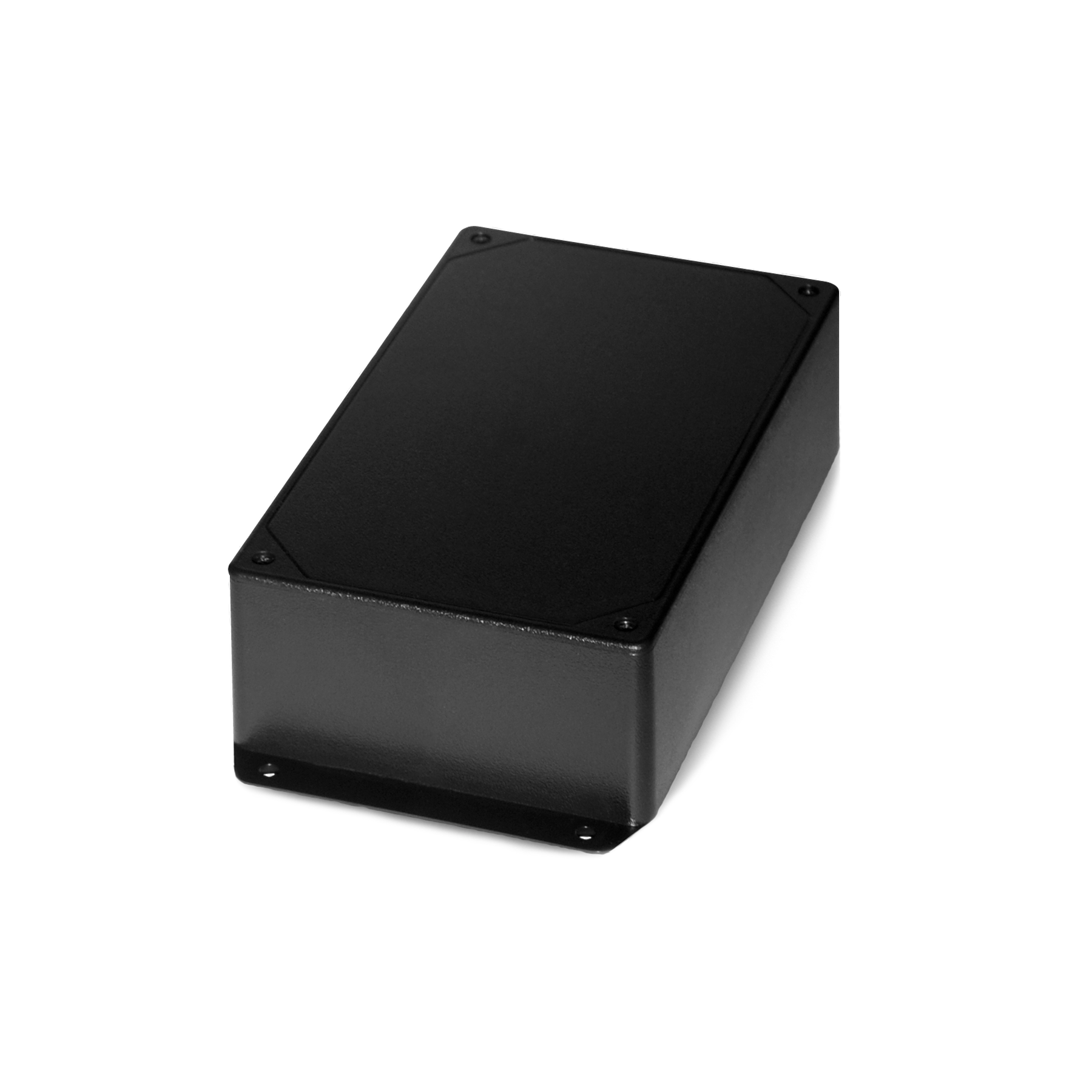

EX2432D (Expansion Module)
![EX2432D](../images/aciEX2432Dsmall.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
The EX2432D Output Expansion Module provides 4 additional analog outputs and 4 additional digital outputs to the RM2432 Receiver. These wireless devices utilize reliable Spread Spectrum Mesh Network Radio technology. Together with other ACI wireless sensors and controls, the system can be used to transmit remote sensor readings, status/alarm indications and control signals wirelessly. It is compatible with any control systems or DDC panels that accept 0-10 VDC or 0-5 VDC inputs. A maximum of 2 EX2432 can be used with one RM2432 receiver. Up to 12 analog outputs and 12 digital outputs when two Ex2432Ds are connected to the RM2432 Receiver. Wireless sensor transmitters should be installed within 200 to 500 feet of the RM2432 receiver. RR2552 signal repeaters can be installed as needed to increase transmission distance between sensors and receivers.
