RTI (Resistance to 4-20mA (Loop))

Product data sheet:	RTI.pdf
Product instruction:	RTI.pdf

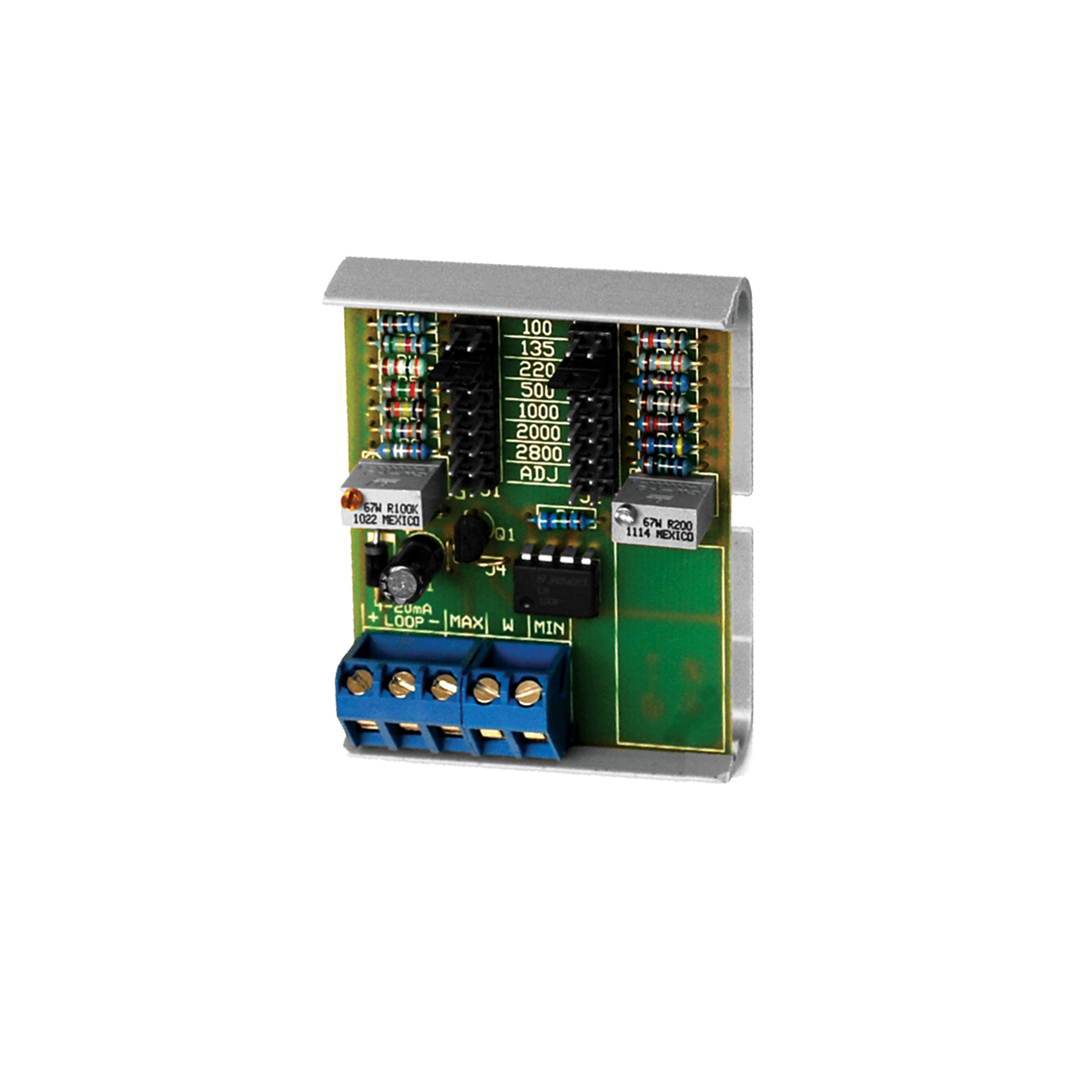

Product photo:	RTI.png
Product Dimensions:	M0000240 Rev 1.pdf	M0000240 Rev 1.dxf

The RTI converts a 3-wire resistance signal to an analog output, using current loop power (two wire). The RTI is reverse polarity protected and offers linear tracking of a 3-wire resistance input against the standard output signal of a 4 to 20 milliamp (current source). Its small size and selfpowered feature lends its use to remote mounting for feedback signals from a valve or damper motor indicating its position.
