ARM2 (Analog Rescaling Module)


ARM2
Product data sheet: pdfARM2.pdf
Product instruction: pdfARM2.pdf

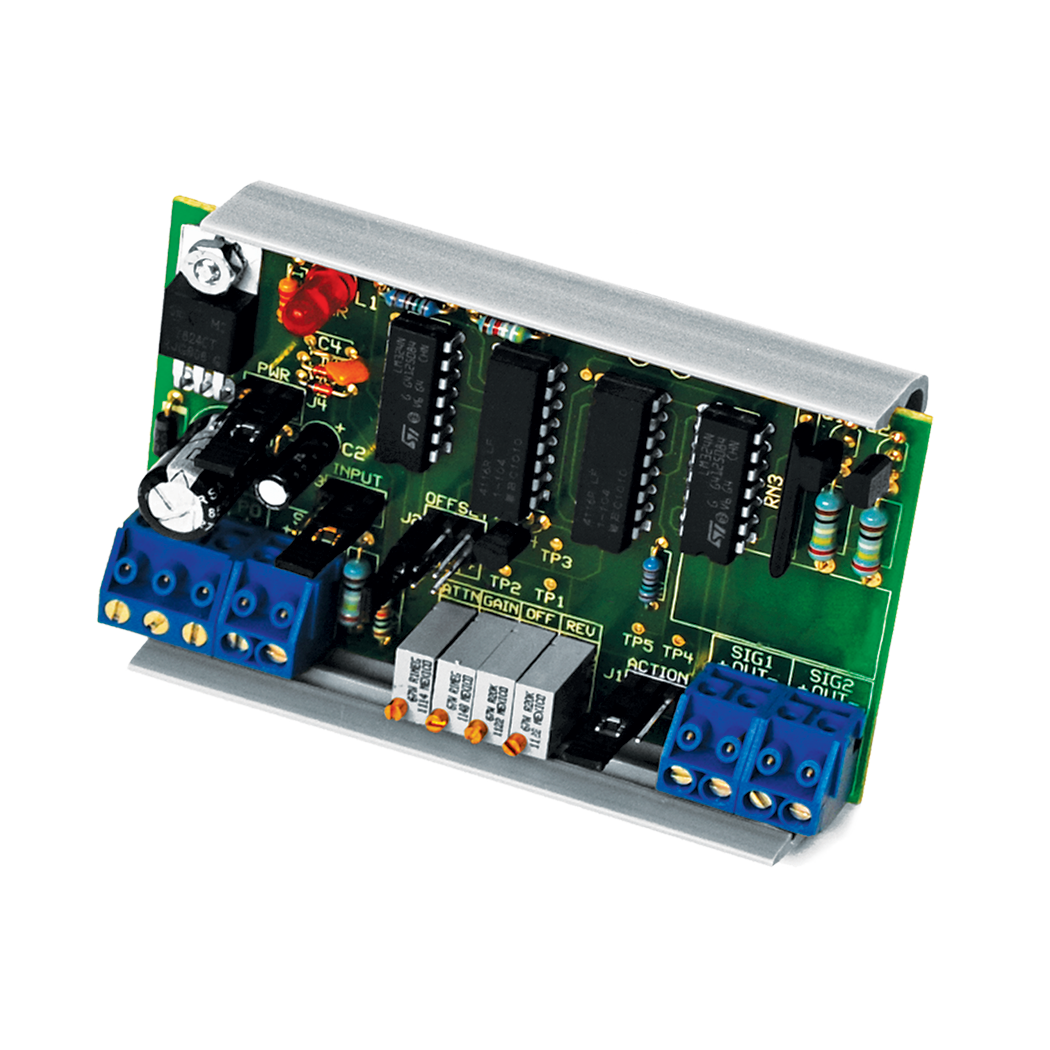

Product photo: image picARM2.png
Product Dimensions: pdfM0000214
Rev 1.pdf
dxf picM0000214
Rev 1.dxf

The ARM2 will accept a single analog voltage or current signal and split that signal into two DC non-isolated current sourcing outputs that can be re-scaled. Its primary application is as a signal splitter. The outputs are always scaled identically and will always track each other. The ARM2 can be powered by a 24 VAC or VDC source. It has an adjustable gain and offset and a regulated 23 VDC output power supply to power sensors and can also accept a resistance input by using voltage divider applications. The ARM2 is field calibratable, however, factory calibration can be performed for an additional charge. The ARM2 is covered by ACI's Two (2) Year Limited Warranty.
