AIM2 (Analog Isolation Module w/Rescaling Options)


AIM2
Product data sheet: pdfAIM2.pdf
Product instruction: pdfAIM2.pdf

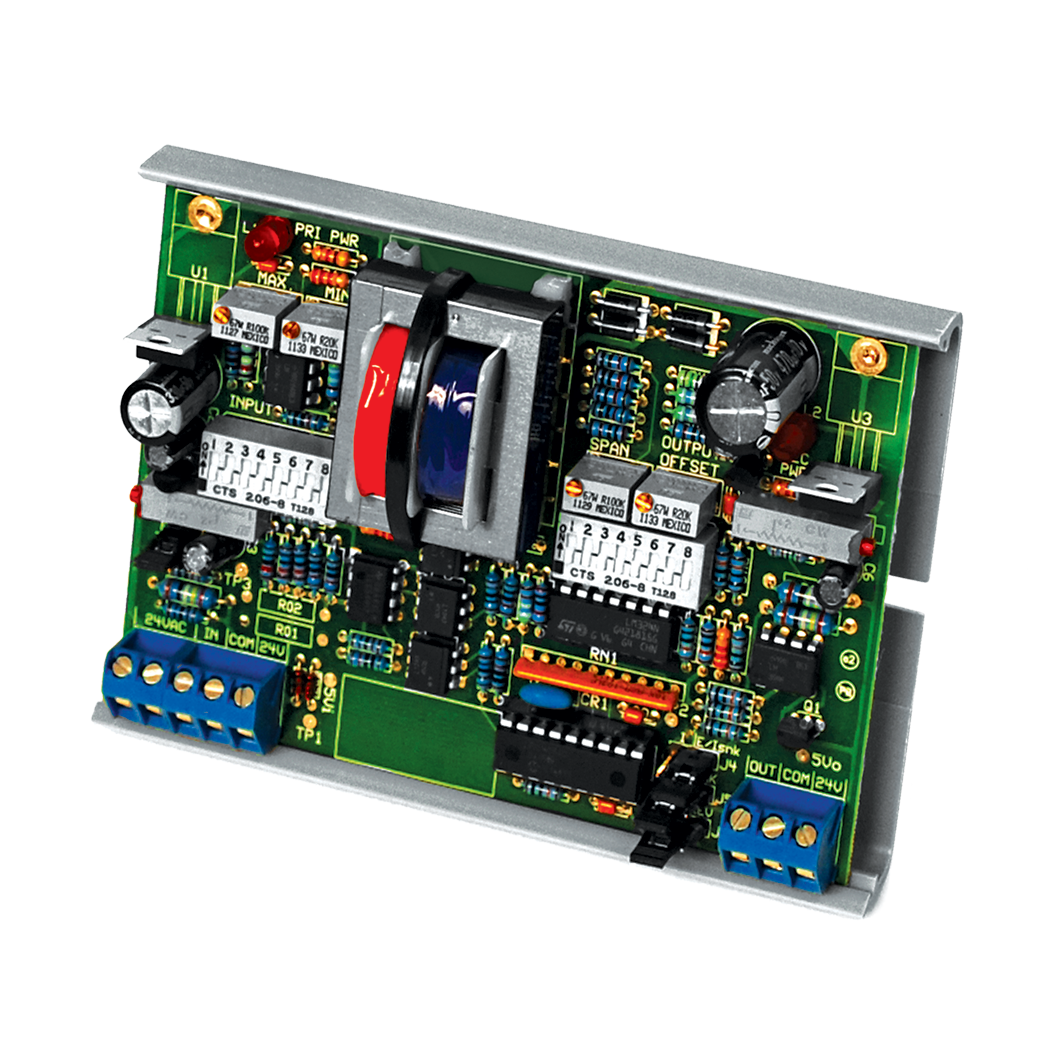

Product photo: image picAIM2.png
Product Dimensions: pdfM0000211
Rev 1.pdf
dxf picM0000211
Rev 1.dxf

The AIM2 optically isolates the analog (voltage or current) signal to the device being controlled. It will accept any input signals between 0 and 20 volts, or 0 and 20 mA, and output any signal within those ranges. The AIM2 has preset or adjustable inputs, and preset or adjustable outputs, that can be either voltage or current. The current signals on the input or output, can be either sink or source. The AIM2 requires one external 24 VAC isolation transformer with floating secondar for power. It has an on-board 24 VAC isolation transformer to supply power to the isolated output. The AIM2 is covered by ACI's Two (2) Year Limited Warranty.
