AIM1 (Analog Isolation Module w/Rescaling Options)
| Product data sheet: |  AIM1.pdf |
|
| Product instruction: | AIM1.pdf |
|

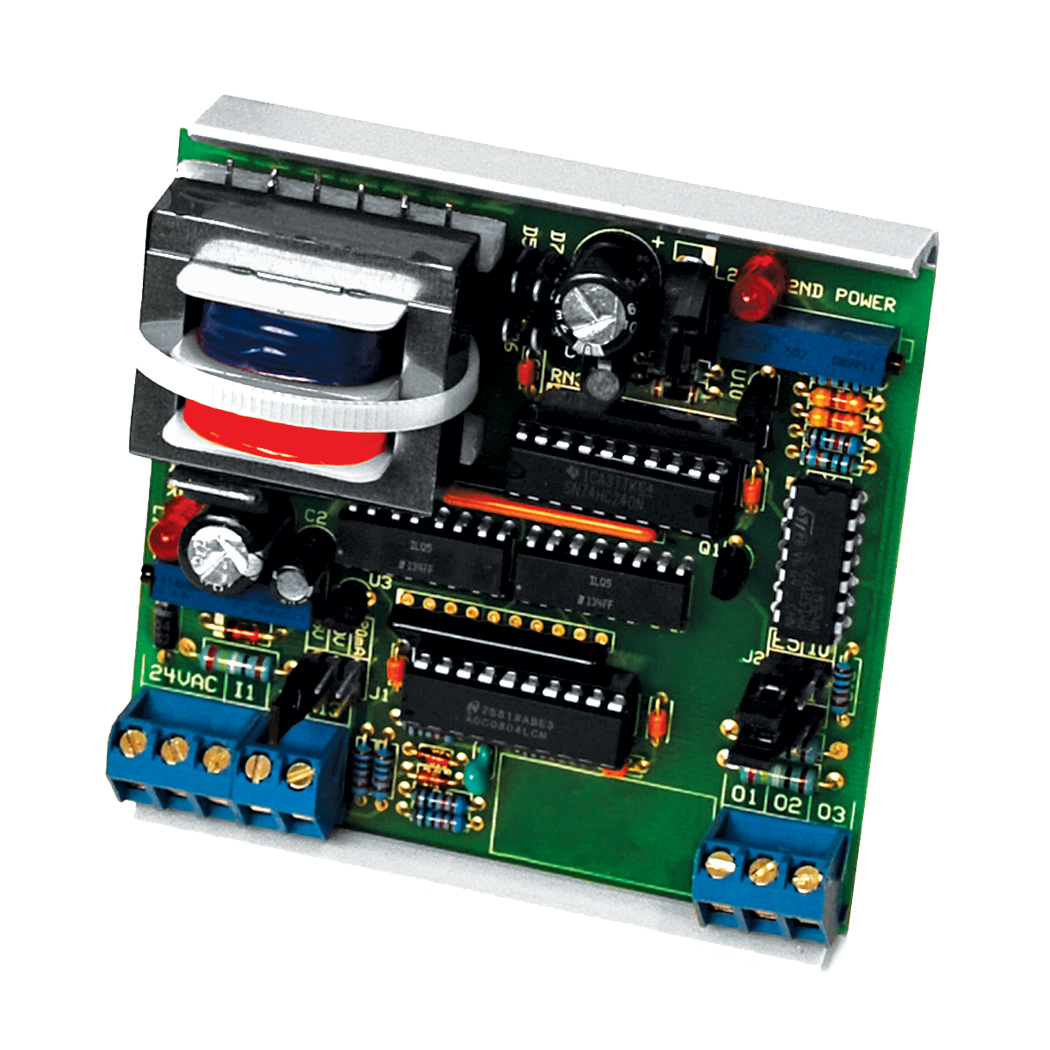

| Product photo: |  AIM1.png |
|
| Product Dimensions: | M0000210 Rev 1.pdf |
 M0000210Rev 1.dxf |
The AIM1 optically isolates an analog voltage or current input signal from its corresponding output signal. The factory calibrated output is linear and proportional (1:1 ratio) to the input signal. The AIM1 will accept a 0 to 5 volt, 0 to 10 volt or 0 to 20 mA input span and output any one of those same ranges. It requires one external 24 VAC transformer for power and has an onboard 24 VAC isolation transformer to supply the isolated output. The AIM1 is covered by ACI's Two (2) Year Limited Warranty.
