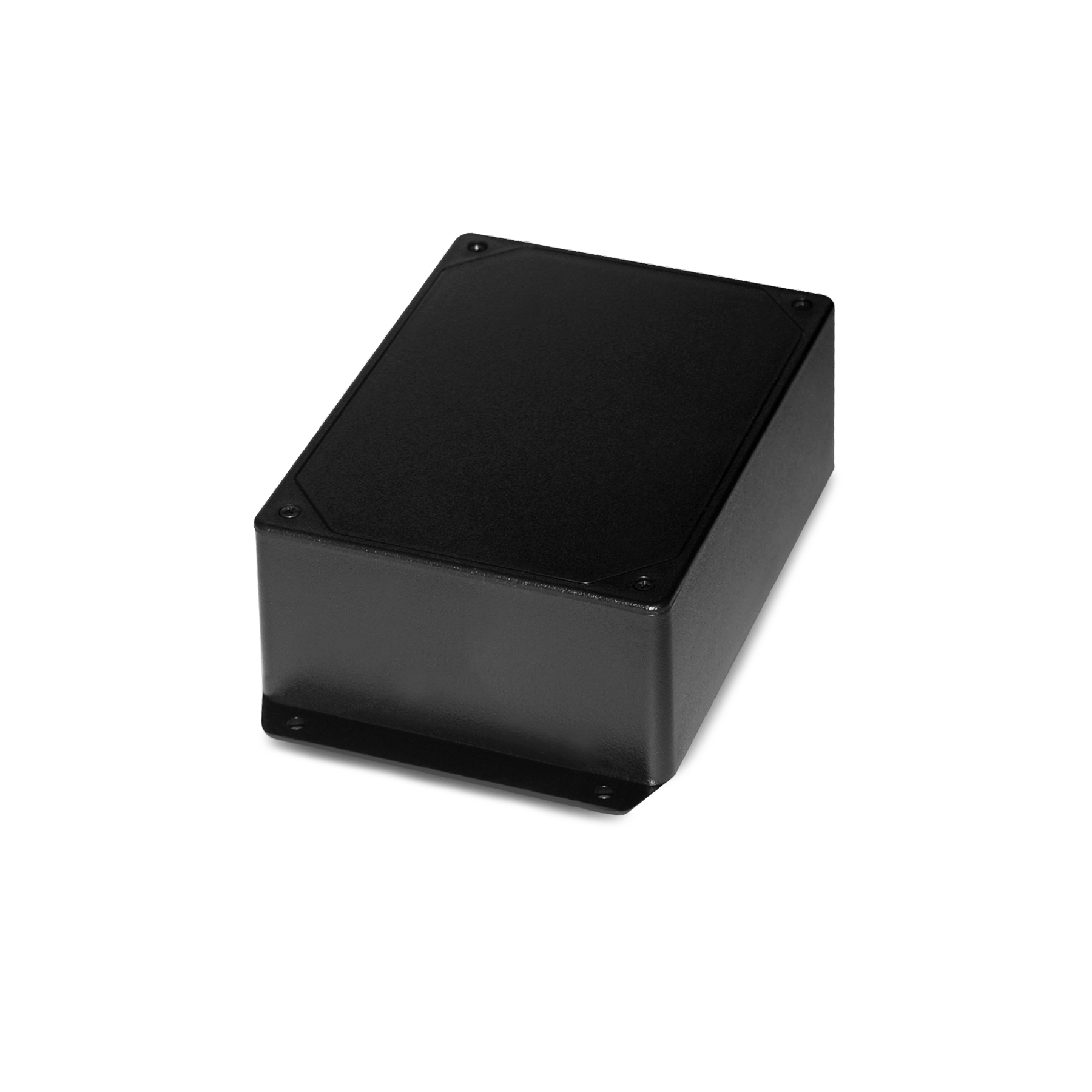

RD2402D (Digital (2) Output Device)
![RD2432D](../images/aciRD2432Dsmall.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
The RD2402 wireless digital output module utilizes reliable Spread Spectrum Mesh Network Radio technology. Together with other wireless transceiver (BACnet, LonWorks & MODBUS), the system can be used to transmit remote control signals wirelessly. The maximum radio transmission distance is dependent on building type. The maximum openair transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. Generally a wireless system will cover at least three floors - one floor above and one floor below the output module location. In some buildings with favorable transmission characteristics the system may cover more floors. Wireless transceiver or repeaters should be installed within 200 to 500 feet of the RD2402 output module. RR2552 signal repeaters can be installed as needed to increase transmission distance between transceiver and output modules. The RD2402D is covered by ACI's Two (2) Year Limited Warranty.
