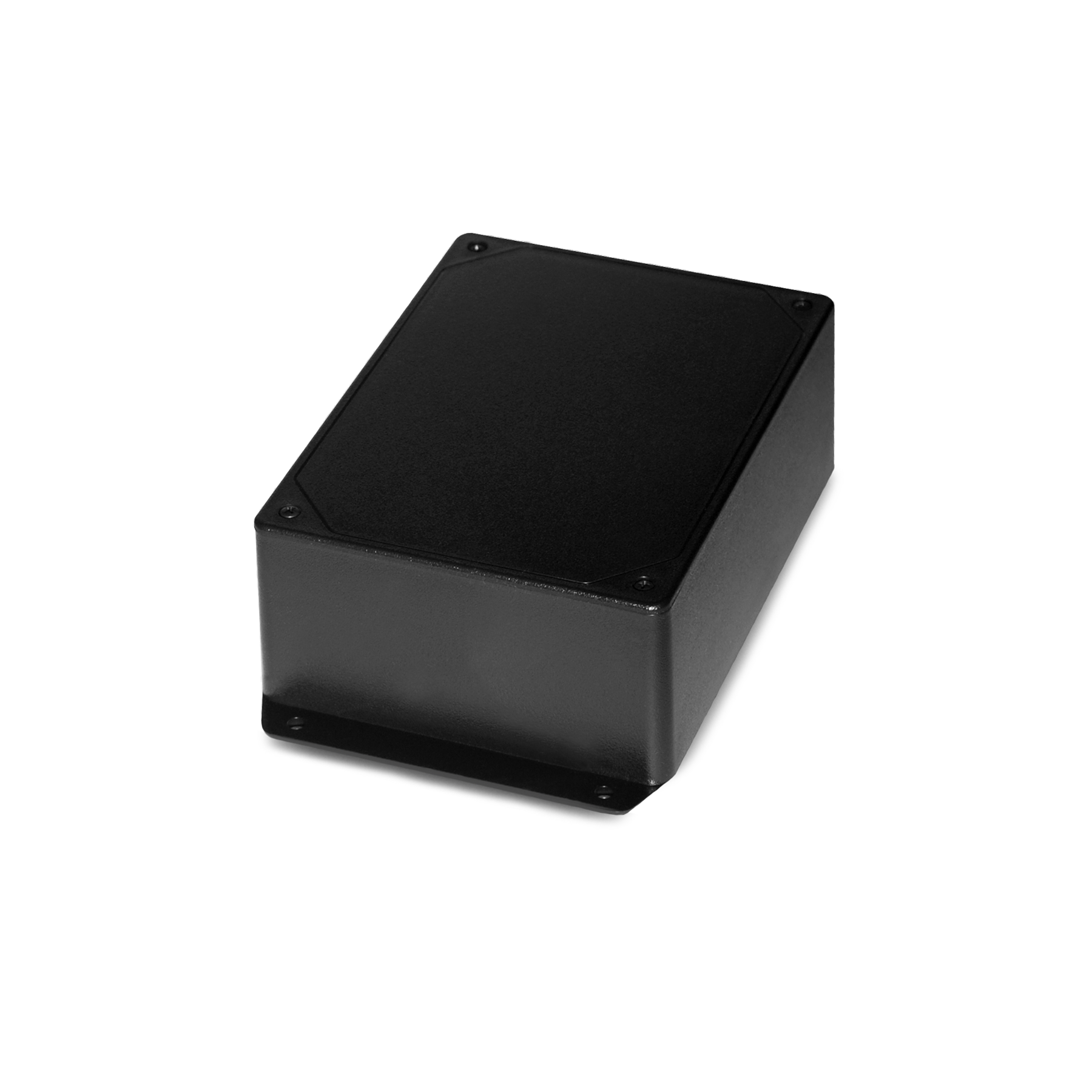

RR2552B (Spread Spectrum Repeater)
![RR2552](../images/aciRR2552Bsmall.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
The mesh network Series 2000 RR2552 signal repeater utilizes reliable Spread Spectrum Radio technology. It can be installed easily in minutes to increase the transmission distance between wireless sensors and the receivers. The maximum radio transmission distance is dependent on building type. The maximum open air transmission distance between two repeaters is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. Multiple repeaters can be used to extend the transmission distance to thousands of feet inside any commercial and industrial buildings. The Series 2000 sensor Data & Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the repeaters during installation. There is no need for special wireless installation equipment or site survey tools. The Series 2000 wireless system can be used with any LON, BacNet, MODbus, DDC control system or panel. The RR2552 is covered by ACI's Two (2) Year Limited Warranty.
