MOD9200BNT (Spread Spectrum BACnet® MSTP Network Transceiver)
| Product data sheet: |  MOD9200BNT.pdf |
| Product instruction: | MOD9200BNT.pdf |

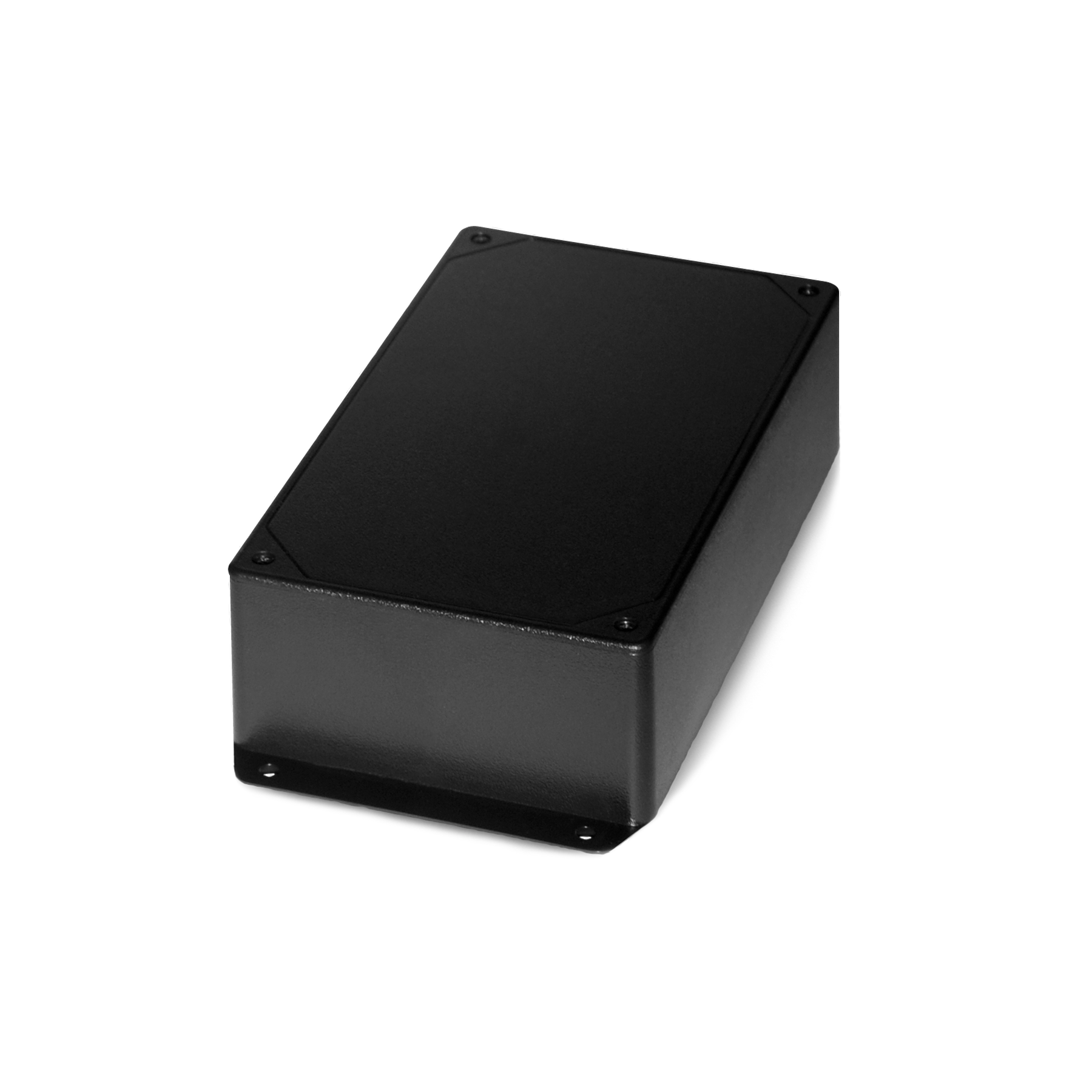

| Product photo: |  MOD9200BNT.png |
| Additional Information: | MOD9200BNT User Manual.pdf |
The Series 2000 BACnet® network transceiver utilizes reliable Spread Spectrum Mesh Network Radio technology. Together with other wireless sensors and controls, the system can be used to transmit remote sensor readings, status/alarm indications, control signals and outputs wirelessly. It is compatible with any control panels or Automation Systems that utilize BACnet MSTP (Master Slave Token Passing) communication protocol or interface. Up to 50 separate physical wireless sensor transmitters and/or wireless remote output (analog & digital) modules can be used with one MOD9200BNT Transceiver and up to 100 data points and 100 outputs can be monitored and controlled with one (1) MOD9200 Transceiver. The maximum radio transmission distance is dependent on building type. The maximum open-air transmission distance is one mile. In a typical commercial building with steel I-beam construction, concrete floors with reinforcing rod, and metal stud walls, it can be expected that transmissions will penetrate vertically through floors and horizontally through 200 to 500 feet of walls, furniture and air. The MOD9200BNT is covered by ACI's Two (2) Year Limited Warranty.
