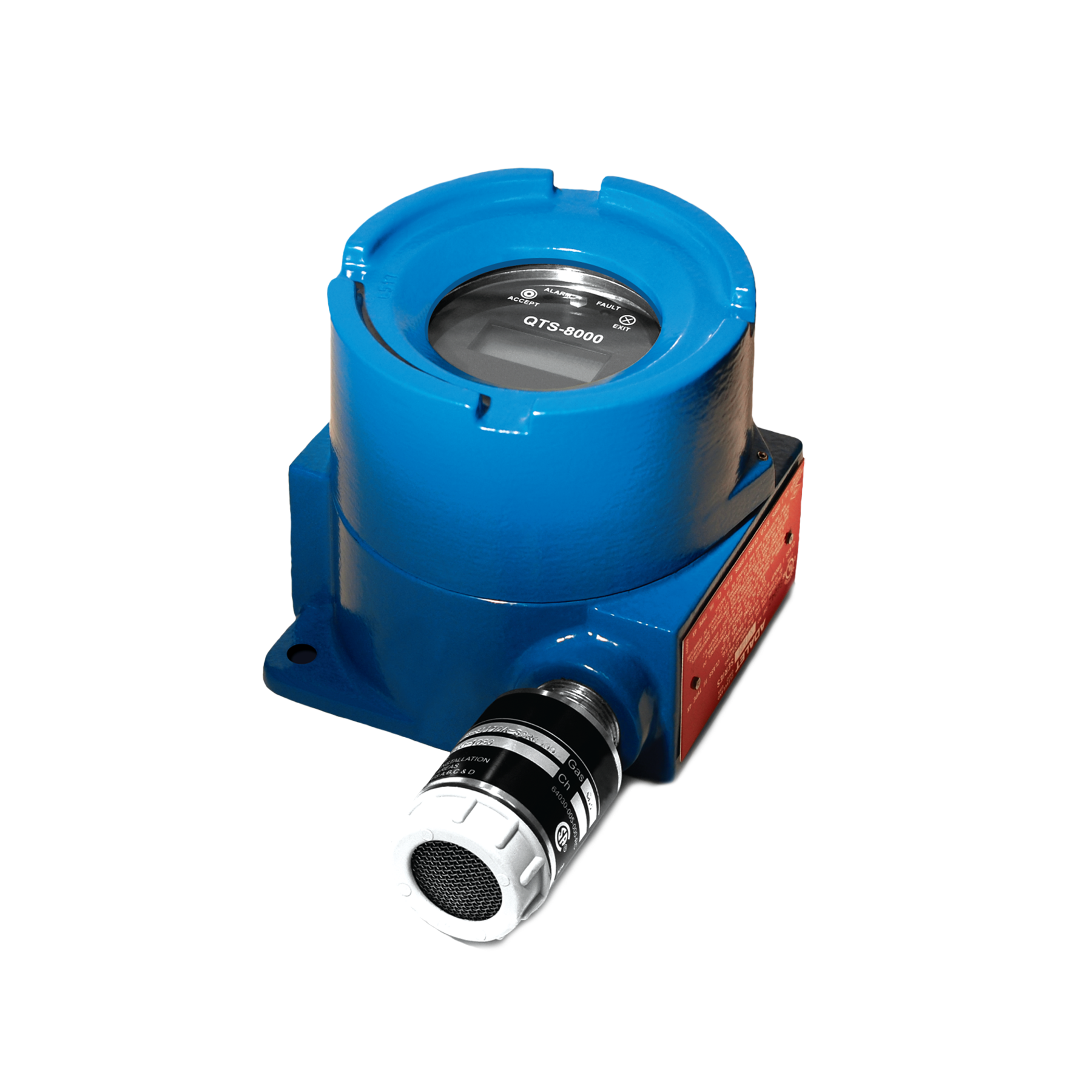

QTS-8000 Combustible Sensor
| Product data sheet: |  QTS-8000.pdf |
| Product photo: |  QTS-8000.png |
| Additional Information: | GAS AREA.pdf |
The QTS-8000 series is a digitally controlled, microprocessor based “Smart Sensor” used for the detection and data transmission of toxic or combustible gases. When configured with the extended feature option, it acts as a controller, complete with 2 relays, adjustable setpoints and RS-485 communication. Calibration and relay logic configuration is non-intrusive via a keypad activated through the glass cover by a magnetic tool. The electrochemical sensor elements, for detection of toxic gases, have a typical life of 2 to 3 years, are easily field replaceable, and do not require electrolyte replacement. The catalytic bead sensors for combustible gases are highly poison resistant and have a similar life expectancy. The enclosure is rated Class I, Div I, Groups B, C & D. The QTS-8000 Series is covered by ACI's Two (2) Year Limited Warranty.
GASES COVERED: Ammonia, Carbon Monoxide, Chlorine, Chlorine Dioxide, Combustibles, Hydrogen, Hydrogen Chloride, Nitric Oxide, Nitrogen Dioxide, Oxygen, Sulphur Dioxide
