B5 Series
![B5 Series](../images/aciB5small.png)
Product data sheet: | ![]() |
Product instruction: | ![]() |
Product photo: | ![]() |
PDF Drawing: | ![]() |

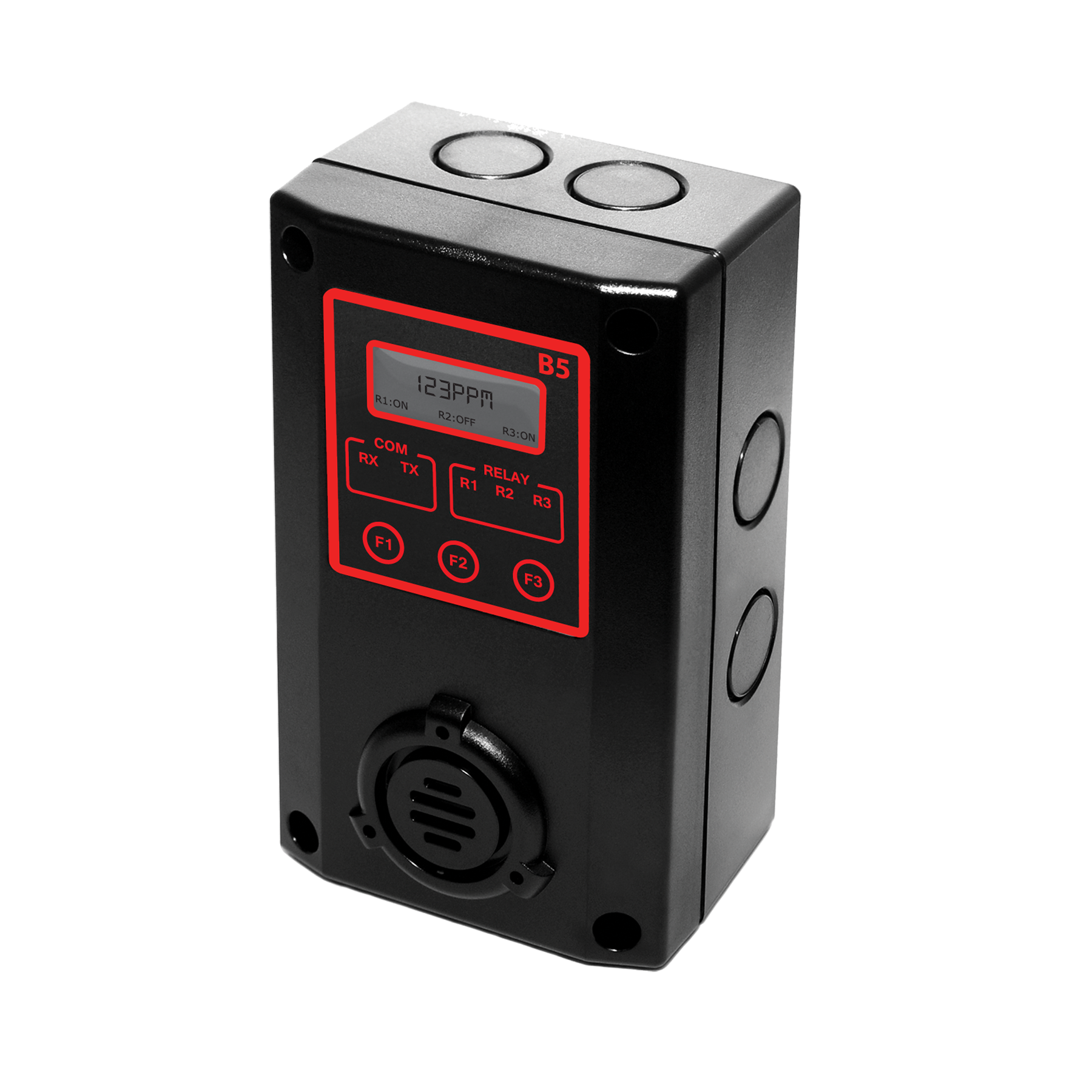

The B5 Series is a BACnetTM enabled, microprocessor based “smart” gas transmitter. It is paired with either an electrochemical gas sensor for toxic gases, or a catalytic bead sensor for combustible gases. Pre-calibrated sensors can be purchased and installed by the user, thereby reducing calibration costs and minimizing downtime. The user can select from numerous display options, including relay status, time, TWA, STEL, concentration, or nothing at all. The units can be installed as stand-alone, or networked digitally with a BACnetTM enabled controller. The B5 supports BACnetTM MS/TP protocol and can be networked to form a BACnetTM MS/TP network. The B5 can be set to be a Master Node or a Slave Node in the field. Default is Slave Node. All relay parameters can be controlled and programmed through a BACnetTM controller or set individually on the unit. The B5 series is covered by ACI's Two (2) Year Limited Warranty.
GASES COVERED: Acetone, Ammonia, Arsine, Benzene, Iso-Butane, Butanol, n-Butane, Carbon Dioxide, Carbon Monoxide, Chlorine, Chlorine Dioxide, Combustibles, Diborane, Ethylene, Ethylene Oxide, Germaine, Hydrogen, Hydrogen Bromide, Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Sulphide, Methane, Methanol, Nitric Oxide, Nitrogen Dioxide, Oxygen, Ozone, Iso-Pentane, Phosphine, Propane, Silane, Sulphur Dioxide
