CO2-20mA-R
| Product data sheet: |  CO2.pdf |
| Product instruction: | T63359-002.pdf |

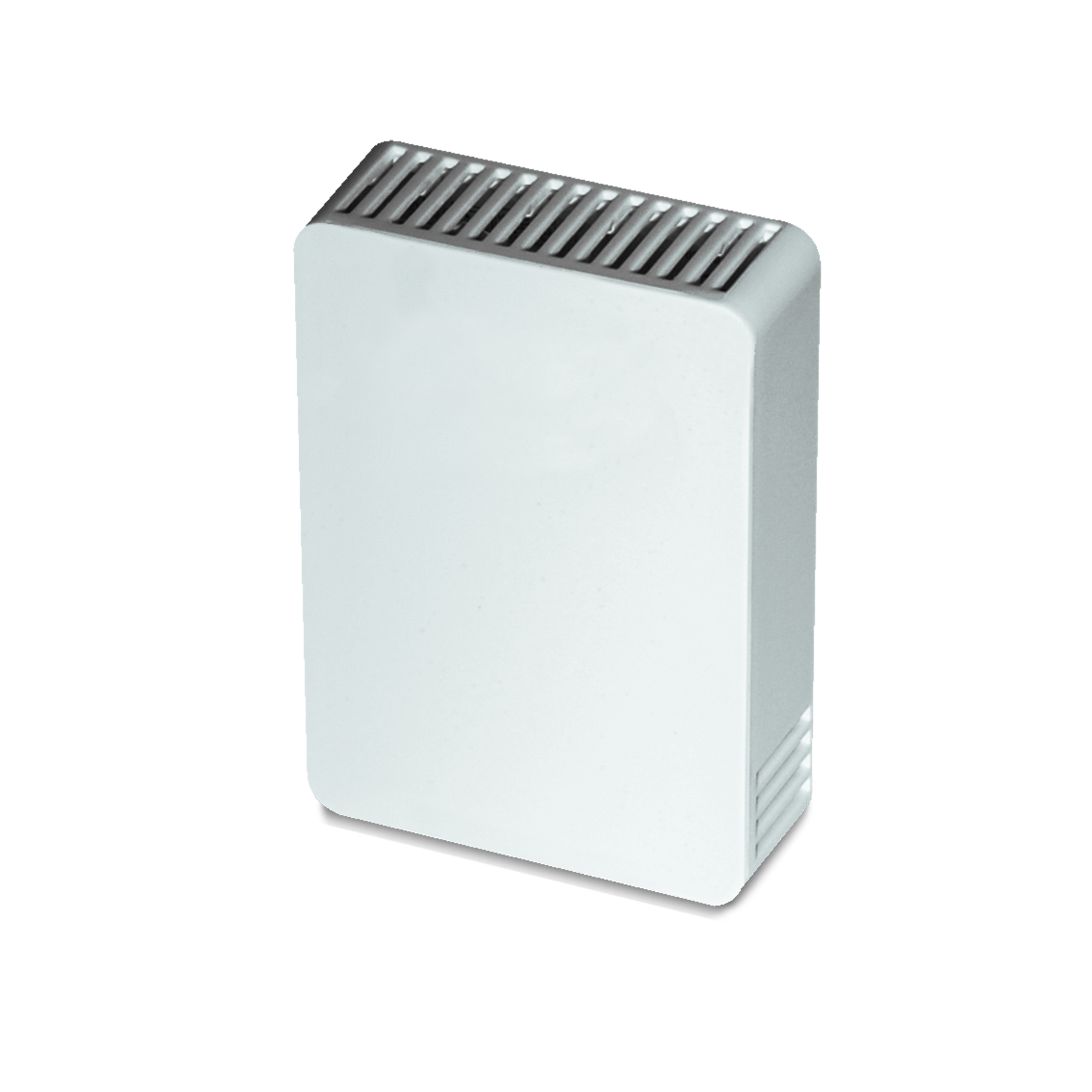

| Product photo: |  CO2-20mA-R.png |
The CO2 Series monitors CO2 from 0 to 2000 ppm for wall and duct mount applications. They feature analog outputs (see order grid for output options) with a patented ABC Logic™ self-calibration system. The concentration of CO2 is measured using a Single Beam, Non-Dispersive Infrared (NDIR) Absorption sensing method. Room units feature the option of multi-colored LEDs. They will indicate one of five approximate ppm levels. These units should not be used in environments such as greenhouses, wineries, breweries. They should also be avoided in areas where industrial sources of CO2 are present or in applications where the space is left unoccupied for less than 4 hours a day. The CO2 Series is covered by ACI's Two (2) Year Limited Warranty.
