ASENSE-OUTDOOR
| Product data sheet: |  ASENSE-OUTDOOR.pdf |
| Product instruction: | ASENSE OUTDOOR-Install Instructions.pdf |

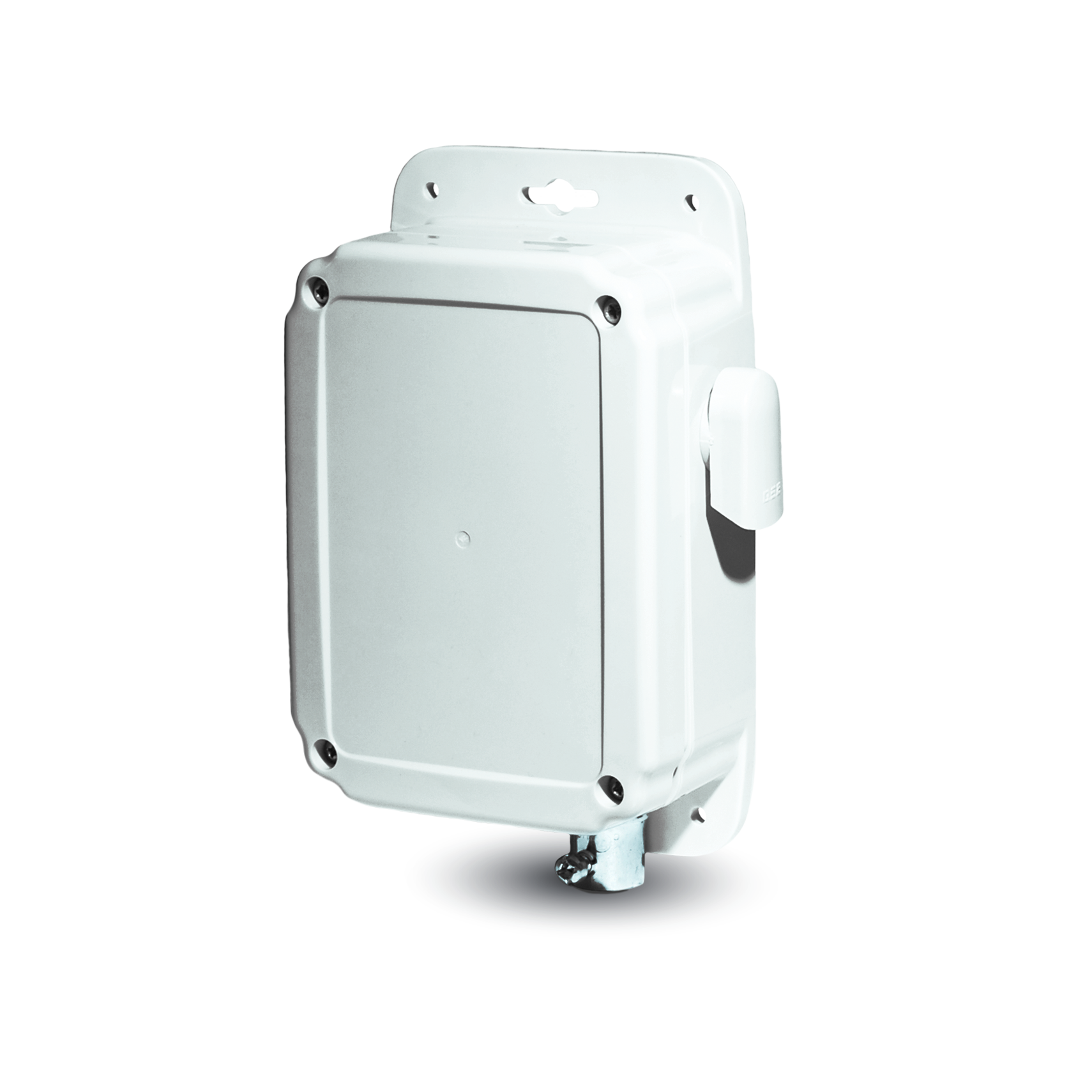

| Product photo: |  ASENSE-OUTDOOR.png |
The ASENSE Series measures the CO2 concentration in the ambient air up to 2,000 ppm and converts the data into an analog output. This data can be used in conjunction with a Building Automation or Demand Control Ventilation System. This decreases energy consumption while creating a healthier indoor climate. Units feature an analog temperature output (-4 to 140°F) and come with combined output options of 0-5 VDC or 0-10 VDC and 0 to 20 mA (4 to 20 is field selectable via an onboard jumper. A relay option is available for this series as well. The SADK Calibration Kit is a configuration and test utility to assist you in your work with the ASENSE Series. The downloadable program UIP5 gives you access to the main features of the connected product. You also have the option to configure, log and test. Contact ACI for further details. The ASENSE Series is covered by ACI's Five (5) Year Limited Warranty.
