ASA Analog Signal Amplifier
| Product data sheet: |  ASA.pdf |
|
| Product instruction: | ASA.pdf |
|

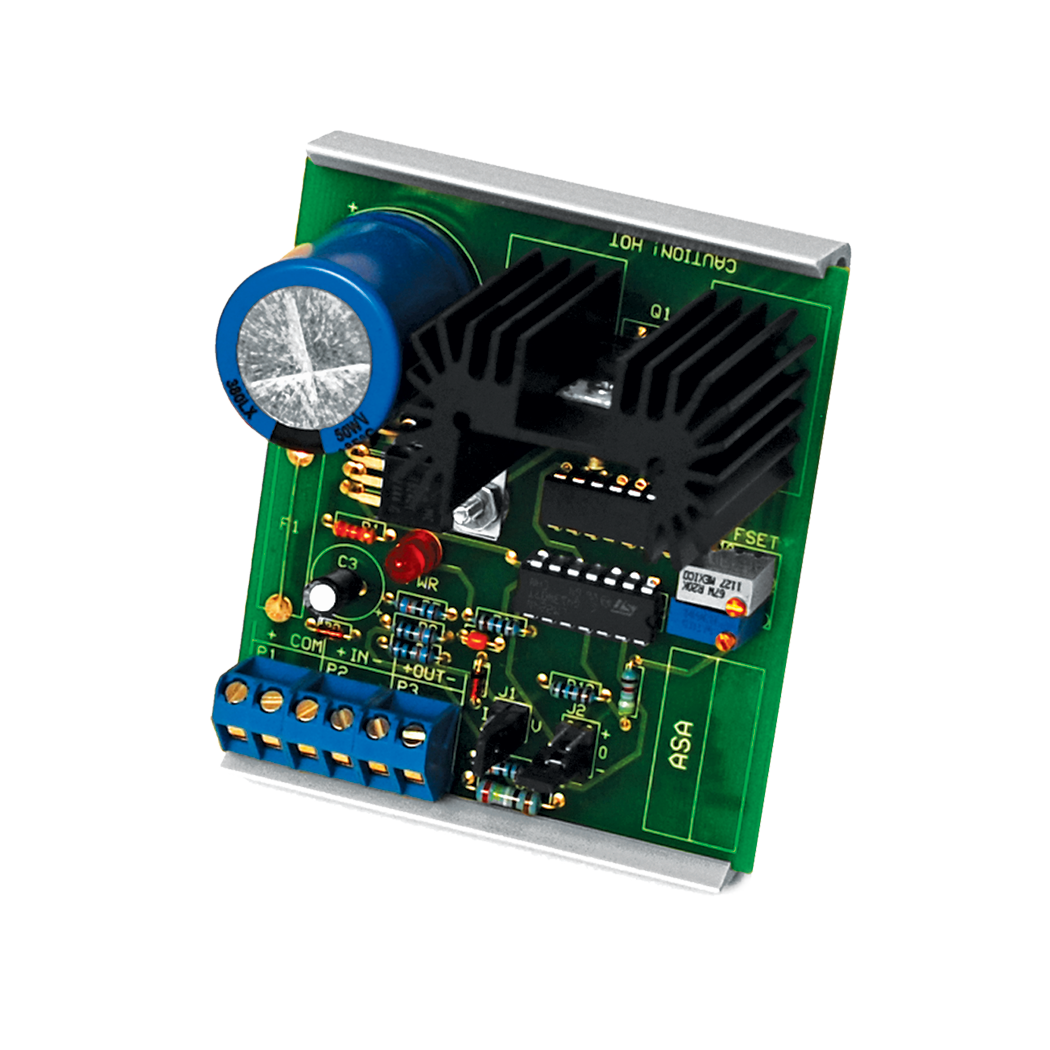

| Product photo: |  ASA.png |
|
| Product Dimensions: | M0000215 Rev 1.pdf |
 M0000215Rev 1.dxf |
The ASA is an analog signal amplifier which accepts an analog voltage or current signal and outputs a voltage signal. Several preset input ranges are jumper selectable. ASA is designed to give a Building Automation System signal output the power (wattage) to control MaxitrolTM gas valves normally installed in rooftop units. The top-adjust trimmer potentiometers can be used to make fine adjustments of gain and offset. The output gain can be adjusted anywhere from 1 to 20 times the input on the ASA (gain will vary depending on type of input). The offset of the output can be +/- 0 to 20 VDC. The ASA is covered by ACI's Two (2) Year Limited Warranty.
