A/MCS-A
| Product data sheet: |  Mini Adjustable Switches.pdf |
|
| Product instruction: | MCS-A.pdf |
|

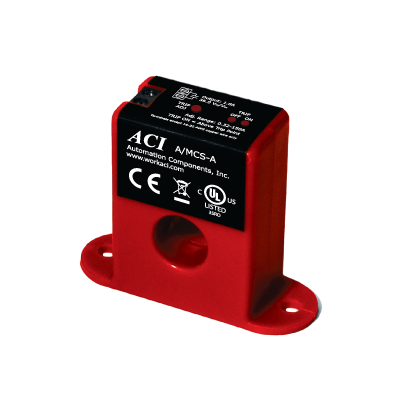

| Product photo: |  A/MCS-A.png |
|
| Product Dimensions: | Mini Solid Core Adj Rev 1.pdf |
 Mini Solid CoreAdj Rev 1.dxf |
Built smaller for tight applications!
The A/MCS-A is a N/O solid state adjustable current switches. They are ideal for providing status information on any AC current using equipment. The A/MCS-A series is excellent for new installations where the conductors can be run through the housing before connecting the wires and does not need power supplied to it as they induce the current from the conductors being monitored.
The A/MCS-A has outputs that are non-polarity sensitive with N/O solid-state contacts for switching both AC and DC circuits up to 36 volts. These switches also include two Status LED indicators that will indicate three states: tripped on, current present but below trip point, and current off or below the low end of the adjustable trip point range.
